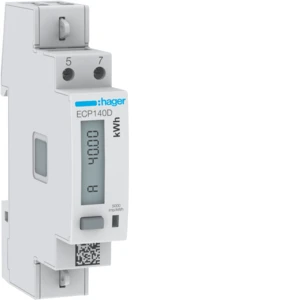

kWh-meter 1-fase direct 40 A, 1 module, met S0 pulsuitgang,
- 3034-2024
- |
- ECP140D
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
kWh-meter 1-fase direct 40 A, 1 module, met S0 pulsuitgang,
kWh-meter 1-fase direct 40 A, 1 module, met S0 pulsuitgang, MID
Ordercode YESSS
3034-2024
Product code
ECP140D
EAN code
03250612231362
Product group
Electricity meter
Brand
Hager
Type
ECP140D
Product description
kWh-meter 1-fase direct 40 A, 1 module, met S0 pulsuitgang, MID
Product specifications
Type of meter
Electronic
Nominal current (In)
40 A
Max. current (Imax)
40 A
Nominal voltage (Un) N-L
184 - 276 V
Nominal voltage (Un) L-L
230 - 230 V
Frequency
45 - 65 Hz
Accuracy class
B
Pole type
Single phase
Model
Direct measurement
Energy type
Effective power
Suitable for
Purchase/supply
Tariff type
One-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
1000 - 1000 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
1
EEC40 signature
No
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP20
Degree of protection (NEMA)
2
Width
18 mm
Depth
60 mm
Height
92 mm
Power consumption
1 W
