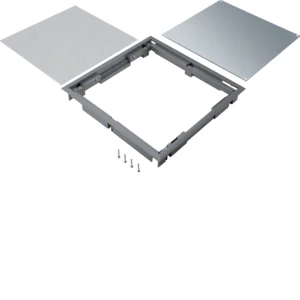

Deksel blind Q08 294x294mm grijs voor 12mm vloerafdekking
Add to selection
General information
Ordercode YESSS
1946-7901
Product code
BDQ08127011
EAN code
04012002245217
Product group
Device installation insert for subfloor installation
Brand
Hager
Serie
Electraplan
Type
VE-EE
Deksel blind Q08 294x294mm grijs voor 12mm vloerafdekking
Deksel blind Q08 294x294mm grijs voor 12mm vloerafdekking
STOCK
IN STOCK
0
piece
Product description
Deksel blind Q08 294x294mm grijs voor 12mm vloerafdekking
Product specifications
Cover model
Other
Suitable for wet cleaning
No
Suitable for subfloor duct
Yes
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Number of device cups
0
With opening carpeting
Yes
Depth of flooring recess
12 mm
Protective frame carpeting
Yes
Min. built-in depth
57 mm
Colour
Grey
RAL-number
7011
Length built-in dimension
294 mm
Width built-in dimension
294 mm
Number of socket outlets with protective contact CEE 7/3 (type F)
0
Number of inlets
0
With cable outlet in cover
No
Housing material
Plastic
Surface protection housing
Other
Material cover
Plastic
Surface protection cover
Galvanised
Surface treatment cover
Other
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
Yes
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
0
Lockable cover
Yes
Lock control
Tool
Vertical load applied across small surface area acc. to EN 50085-2-2
1.5 kN
Degree of protection (IP) when in use (cable outlet open)
IP20
Degree of protection (IP) when not in use (cable outlet closed)
IP30
