General information

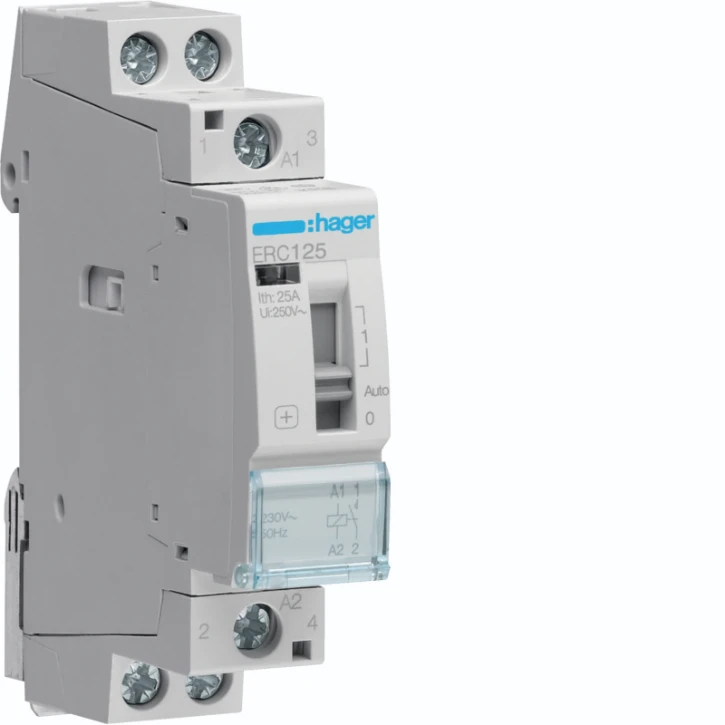

Magneetschakelaar 25 A met handbediening, 1 maak, 230 V AC
Magneetschakelaar 25 A met handbediening, 1 maak, 230 V AC 50Hz
Ordercode YESSS
1175-2342
Product code
ERC125
EAN code
03250612400560
Product group
Installation contactor for distribution board
Brand
Hager
Type
ERC125
Product description
Magneetschakelaar 25 A met handbediening, 1 maak, 230 V AC 50Hz
Product specifications
Rated operating voltage
230 - 230 V
Rated operation current
25 A
Rated excitation voltage
230 - 230 V
Voltage type (operating voltage)
AC
Voltage type (excitation voltage)
AC
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Max. incandescent lamp load
1900 W
Max. load fluorescent lamp
950 VA
Max. load fluorescent lamp (Duo circuit)
1990 VA
Max. load fluorescent lamp (parallel compensated)
810 VA
Slider for hand switch
Yes
Built-in depth
60 mm
Additional equipment possible
Yes
Degree of protection (IP)
IP2X
Width in number of modular spacings
1
With day/night function
No
Hum-free
No
Utilization category according to EN IEC 60947-4-1
AC-7a/AC-7b
