Magneetschakelaar 25 A met handbediening, 2 maak, geruisarm, 230V AC
- 1175-2354
- |
- ERC225S
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

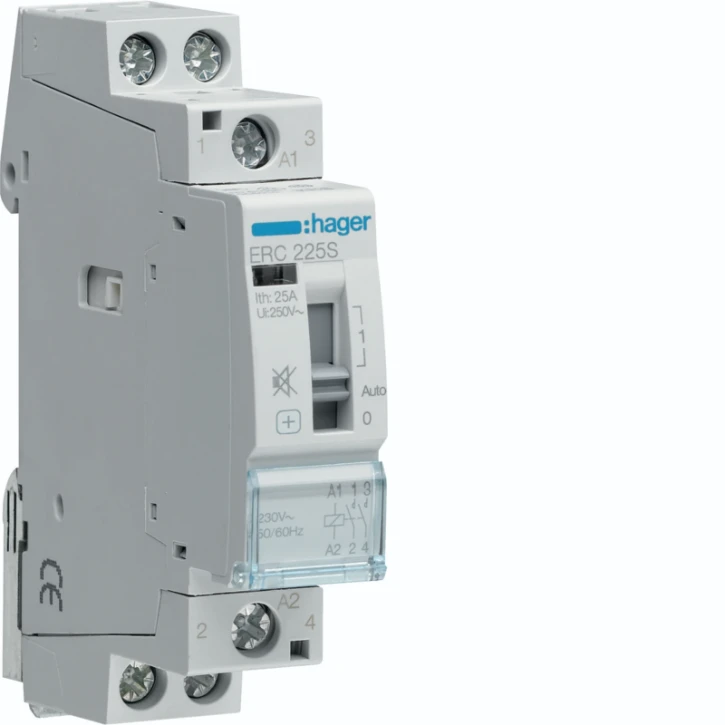

Magneetschakelaar 25 A met handbediening, 2 maak, geruisarm, 230V AC
Magneetschakelaar 25 A met handbediening, 2 maak, geruisarm, 230V AC 5
Ordercode YESSS
1175-2354
Product code
ERC225S
EAN code
03250612400027
Product group
Installation contactor for distribution board
Brand
Hager
Type
ERC225S
Product description
Magneetschakelaar 25 A met handbediening, 2 maak, geruisarm, 230V AC 50/60Hz
Product specifications
Rated operating voltage
230 - 230 V
Rated operation current
25 A
Rated excitation voltage
230 - 230 V
Voltage type (operating voltage)
AC
Voltage type (excitation voltage)
AC
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Max. incandescent lamp load
1900 W
Max. load fluorescent lamp
950 VA
Max. load fluorescent lamp (Duo circuit)
1990 VA
Max. load fluorescent lamp (parallel compensated)
810 VA
Slider for hand switch
Yes
Built-in depth
60 mm
Additional equipment possible
No
Degree of protection (IP)
IP2X
Width in number of modular spacings
1
With day/night function
No
Hum-free
Yes
Utilization category according to EN IEC 60947-4-1
AC-7a/AC-7b
