Aardlekautomaat 1-polig+N 16 A C-karakteristiek 6 kA, 30 mA klasse
- 0012-7207
- |
- ADA966G
105
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

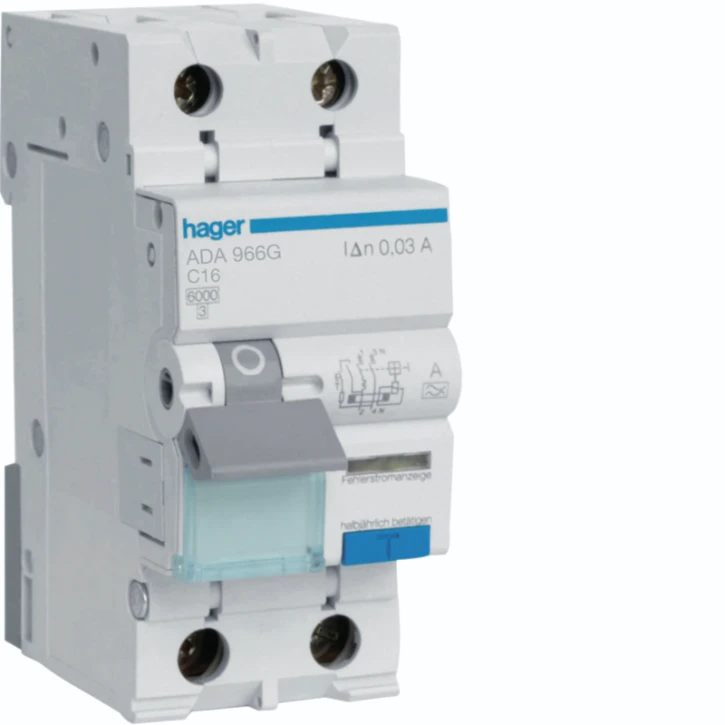

Aardlekautomaat 1-polig+N 16 A C-karakteristiek 6 kA, 30 mA klasse
Aardlekautomaat 1-polig+N 16 A C-karakteristiek 6 kA, 30 mA klasse A
Ordercode YESSS
0012-7207
Product code
ADA966G
EAN code
03250611011095
Product group
Earth leakage circuit breaker
Brand
Hager
Serie
HACO
Type
30 mA
Product description
Aardlekautomaat 1-polig+N 16 A C-karakteristiek 6 kA, 30 mA klasse A
Product specifications
Number of poles (total)
2
Number of protected poles
1
Rated voltage
240 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
16 A
Rated fault current
0.03 A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to IEC 60947-2
6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
6 kA
Disconnection characteristic
Undelayed
Surge current capacity
0.25 kA
Voltage type
AC
Frequency
50 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
With interlocking device
Yes
Overvoltage category
3
Pollution degree
2
Ambient temperature during operating
-25 - 40 °C
Width in number of modular spacings
2
Built-in depth
68 mm
Anti-nuisance tripping version
No
Degree of protection (IP)
IP2X
Connectable conductor cross section solid-core
1 - 25 mm²
Connectable conductor cross section multi-wired
1 - 16 mm²
Power loss
5.2 W
