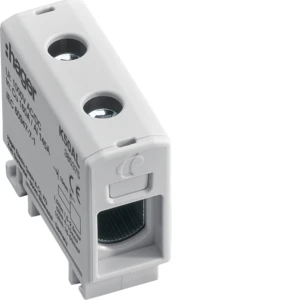

Aansluitklem 1-polig, 2,5 - 50 mm², grijs
Add to selection
General information
Ordercode YESSS
2329-3600
Product code
K50AL
EAN code
03250613803759
Product group
Feed-through terminal block
Brand
Hager
Type
K50AL
Aansluitklem 1-polig, 2,5 - 50 mm², grijs
Aansluitklem 1-polig, 2,5 - 50 mm², grijs
STOCK
IN STOCK
0
piece
Product description
Aansluitklem 1-polig, 2,5 - 50 mm², grijs
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
1.5 - 50 mm²
Connectable conductor cross section fine-strand with cable end sleeve
1.5 - 35 mm²
Connectable conductor cross section solid-core
1.5 - 50 mm²
Rated current In
160 A
Rated voltage
1000 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Closing plate required
No
Colour
Grey
Internally connected stages
No
Width
18 mm
Height
43 mm
Depth
49 mm
