Modulaire lastscheider 2-polig 40 A, grijze tuimel
- 1540-6861
- |
- SBN240
20
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

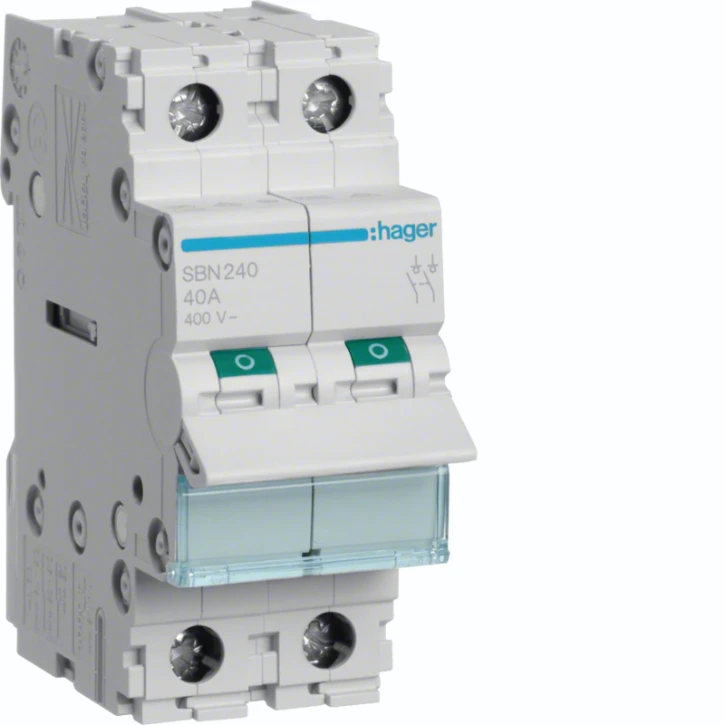

Modulaire lastscheider 2-polig 40 A, grijze tuimel
Modulaire lastscheider 2-polig 40 A, grijze tuimel
Ordercode YESSS
1540-6861
Product code
SBN240
EAN code
03250615510174
Product group
Main switch for distribution board
Brand
Hager
Type
SBN240
Product description
Modulaire lastscheider 2-polig 40 A, grijze tuimel
Product specifications
Switching function
Off switch
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Number of poles
2
Rated current
40 A
Rated voltage
400 V
Min. rated voltage
400 V
Rated switching capacity
0.846 kA
Short-circuit breaking capacity (Icw)
0.6 kA
Voltage type
AC
With signal lamp
No
Colour calotte
Grey
Max. lamp power
0 W
Width in number of modular spacings
2
Built-in depth
68 mm
Degree of protection (IP)
IP20
Imprint/indication
Other
Forced segregation according to DIN VDE 0113
No
