Wisselschakelaar met controle verlichting (rood), W.1, polarwit
- 3142-0134
- |
- WNA003B
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

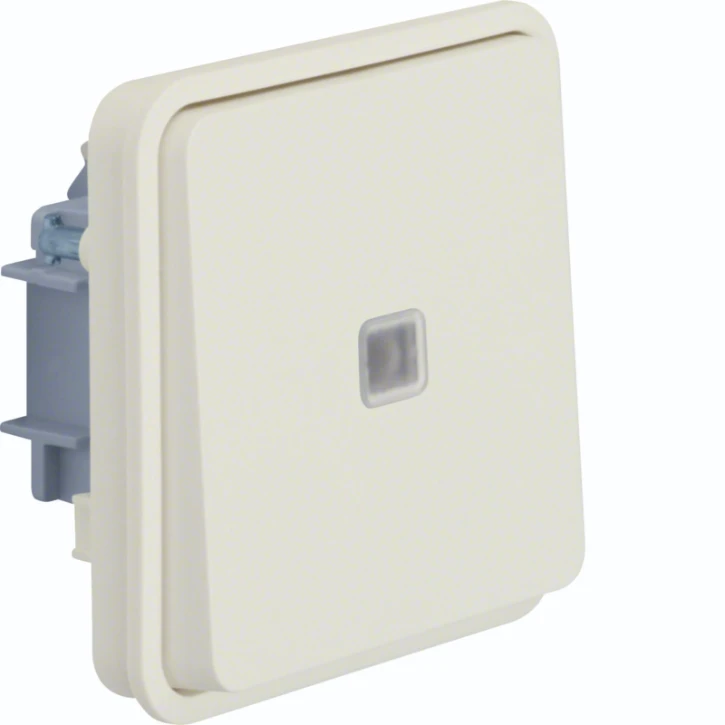

Wisselschakelaar met controle verlichting (rood), W.1, polarwit
Wisselschakelaar met controle verlichting (rood), W.1, polarwit
Ordercode YESSS
3142-0134
Product code
WNA003B
EAN code
03250617175036
Product group
Installation switch
Brand
Hager
Serie
W.1
Type
Schakelaar
Product description
Wisselschakelaar met controle verlichting (rood), W.1, polarwit
Product specifications
Wiring system
Two-way switch
Operating method
Rocker/button
Assembly arrangement
Basic element with central cover plate
Number of modules (module system)
2
Push button switch
No
Number of rockers
1
Mounting method
Surface mounted
Type of fastening
Engage (snap)
With mounting plate
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Label space/information surface
No
Lighting
Yes
Function lighting
Other
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP55
Nominal voltage
250 V
Rated current
10 A
Switching current for fluorescent lamps
10 AX
Monitoring contact
No
Connection type
Push-in clamp
Washing machine switch
No
Device width
75 mm
Device height
75 mm
Device depth
40 mm
Built-in depth
32 mm
Min. depth of built-in installation box
40 mm
Anti-bacterial treatment
No
Impact strength
IK08
Heating switch
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Colour of switch operator
White
Compliant with UK Building Regulations Part M
No
Imprint/indication
None
