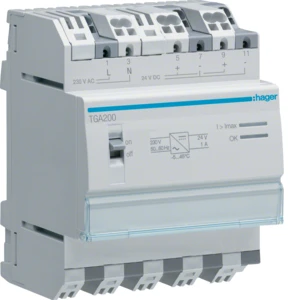

DC-power supply Hager
Add to selection
General information
Ordercode YESSS
1339-1113
Product code
TGA200
EAN code
03250615979964
Product group
DC-power supply
Brand
Hager
Product specifications
Voltage type (supply voltage)
AC
1st secondary output voltage
24 - 24 V
2nd secondary output voltage
0 - 0 V
3rd secondary output voltage
0 - 0 V
Max. output current 1
1 A
Max. output current 2
0 A
Max. output current 3
0 A
Secondary voltage adjustable
No
Nominal value output voltage 1
24 V
Nominal value output current 1
1 A
Nominal value output current 2
0 A
Nominal value output current 3
0 A
Short-circuit-proof
Yes
Rated supply voltage AC 50 Hz
230 - 230 V
Rated supply voltage AC 60 Hz
230 - 230 V
Rated supply voltage DC
24 - 24 V
Output voltage stabilized
Yes
Power consumption
16 VA
Power output
15 W
Stabilized
Yes
Type of electric connection
Plug-in connection
Suitable for rail mounting
Yes
Suitable for distribution board
Yes
Width in number of modular spacings
4
Built-in width
72 mm
Built-in height
68 mm
Direct mounting possible
No
Width
72 mm
Height
90 mm
Depth
64 mm
Suitable for safety functions
No
SIL according to IEC 61508
1
Performance level according to EN ISO 13849-1
Level a
Degree of protection (IP)
IP20
