Add to selection
Aansluitsnoer H05VV-F 3G1,50 wt 3 m
- 0031-0819
- |
- 517400038
26
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

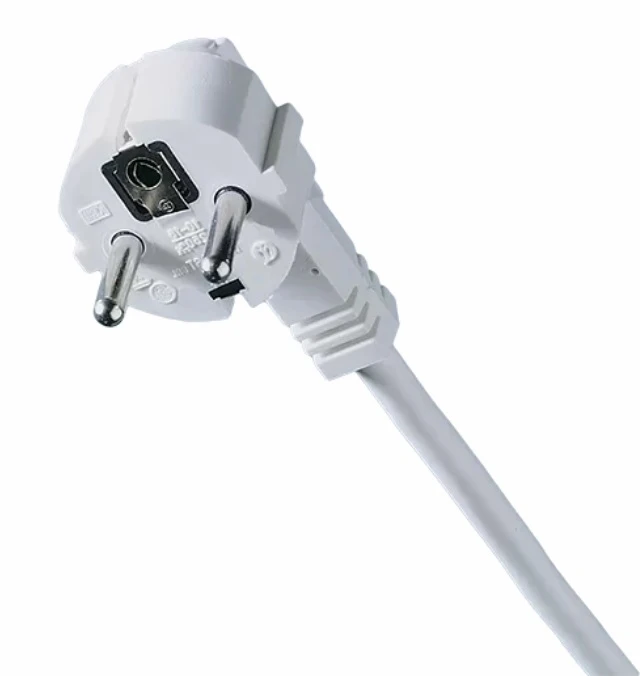

Aansluitsnoer H05VV-F 3G1,50 wt 3 m
Aansluitsnoer H05VV-F 3G1,50 wt 3 m
Ordercode YESSS
0031-0819
Product code
517400038
EAN code
08713284002081
Product group
Power cord
Brand
HK / HAKA
Serie
Aansluitsnoer 70°C
Type
H05VV-F
Product description
Aansluitsnoer H05VV-F 3G1,50 wt 3 m
Product specifications
Connection 1
Protective contact plug CEE 7/4 (type F)
Connection 2
Cable end sleeve
System-oriented connector system
No
Number of cores
3
Nominal cross section conductor
1.5 mm²
Length
3 m
Material outer sheath
Polyvinyl chloride (PVC)
Temperature resistance
-15 - 70 °C
Nominal current
16 A
Nominal voltage
300 - 500 V
Colour outer sheath
White
Spiralized cable
No
Degree of protection (IP)
IP20
Oil resistant according to EN IEC 60811-404
No
With cord switch
No
Outer diameter approximate
7.9 mm
Reaction-to-fire according to EN 13501-6: Class
Eca
With protective conductor
Yes
Cable entry connection 1
Angled
