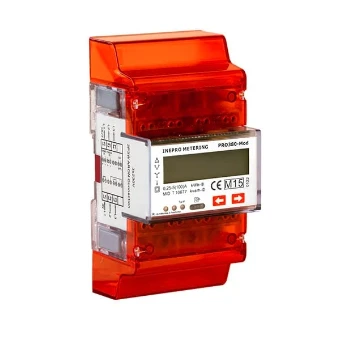

257 Pro380Mod 5(100)Amp U MID 400V 50hz 1 Kimp/4TE
Add to selection
General information
Ordercode YESSS
2015-4739
Product code
KWH1077PRO
EAN code
08717438668864
Product group
Electricity meter
Brand
Inepro
Serie
kWh-meters
Type
3 fase MID
257 Pro380Mod 5(100)Amp U MID 400V 50hz 1 Kimp/4TE
257 Pro380Mod 5(100)Amp U MID 400V 50hz 1 Kimp/4TE
STOCK
IN STOCK
0
piece
Product description
0257 Pro380 Mod 5(100)Amp U MID 400V 50hz 1 Kimp/4TE
Product specifications
Type of meter
Electronic
Nominal current (In)
5 A
Max. current (Imax)
100 A
Nominal voltage (Un) N-L
230 - 400 V
Frequency
50 - 50 Hz
Accuracy class
B
Pole type
Four conductor
Model
Direct measurement
Energy type
Effective power
Suitable for
Purchase
Tariff type
Two-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
1000 - 2000 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
4
Type of interface
Modbus
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP50
