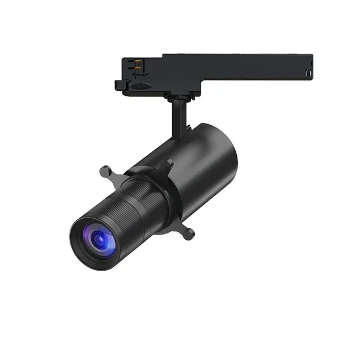

Downlight/spot/floodlight INTERLight
Add to selection
General information
Ordercode YESSS
3108-9971
Product code
IL-AITC30B24
EAN code
08720195277989
Product group
Downlight/spot/floodlight
Brand
INTERLight
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Rotating and swivelling
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Lacquered
Housing colour
Black
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Matt
Light distributor
Reflector
Light distribution
Symmetric/asymmetric
Beam angle
21-40° - Medium beam
Light outlet
Direct/indirect
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Suitable for lamp power
30 - 30 W
Max. system power
30 W
Colour of light
White
Colour temperature
2700 - 6500 K
Colour rendering index CRI
90-100
Width
209 mm
Height/depth
160 mm
Length
169 mm
Outer diameter
80 mm
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Constant light output (CLO)
No
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Beam angle adjustable
Positions
Max. number of luminaires per miniature circuit breaker B16 (MCB)
58
Max. number of luminaires per miniature circuit breaker C16 (MCB)
58
Operation by Bluetooth
Yes
Reflector colour
Silver
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
0 - 750 lm
