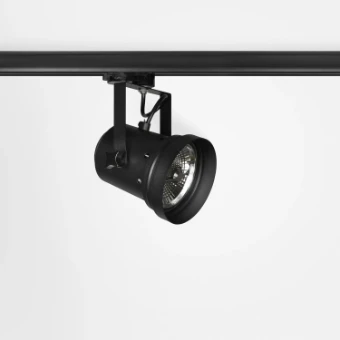

Downlight/spot/floodlight INTERNOVA
Add to selection
General information
Ordercode YESSS
3012-3982
Product code
IN98111532
EAN code
08719988023612
Product group
Downlight/spot/floodlight
Brand
INTERNOVA
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Rotating and swivelling
With movement sensor
No
With light sensor
No
Lamp type
LED exchangeable
With light source
No
Suitable for number of light sources
1
Lamp holder
G53
Housing material
Aluminium
Surface protection
Lacquered
Housing colour
Black
Material cover
None
Surface brushed
No
Voltage type
AC/DC
Nominal voltage
230 - 230 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
None
Light distributor
None
Light outlet
Direct
Degree of protection (NEMA)
1
Impact strength
IK00
Protection class according to IEC 61140
None
Suitable for lamp power
15 - 15 W
Max. system power
15 W
Width
118 mm
Height/depth
150 mm
Length
150 mm
Outer diameter
118 mm
Type of wiring
Ending
Connection type
Busbar adaptor
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
No
Constant light output (CLO)
Yes
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
40
Max. number of luminaires per miniature circuit breaker C16 (MCB)
40
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
