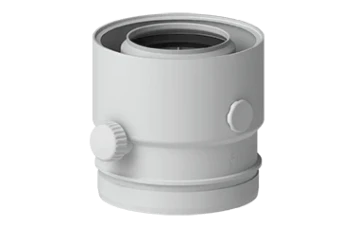

Concentric flue gas/air supply form piece, 2 connections Itho Daalderop
Add to selection
General information
Ordercode YESSS
3017-0653
Product code
04-00011
EAN code
08713418033783
Product group
Concentric flue gas/air supply form piece, 2 connections
Brand
Itho Daalderop
Product specifications
Material inner pipe
Plastic
Material outer pipe
Plastic
Quality class inner pipe
Polypropylene (PP)
Shape
Other
Max. medium temperature (continuous)
120 °C
Positive (overpressure)
Yes
Wet (condensing)
Yes
Negative (negative pressure)
No
Dry (non-condensing)
No
Surface protection outer pipe
Coated
Surface treatment outer pipe
Untreated
Diameter connection 1
60/100 mm
Diameter connection 2
60/100 mm
Wall thickness inner pipe
2 mm
Production method for inner pipe
Seamless
Production method for outer pipe
Seamless
Outer pipe-outer pipe connection
Sleeve with seal
With clamping strip
No
Colour
White
RAL-number
9016
Length of connection 1
35 mm
Length of connection 2
50 mm
With measuring points
Yes
With inspection opening and cover
No
With bottom support
No
With pressure switch
No
