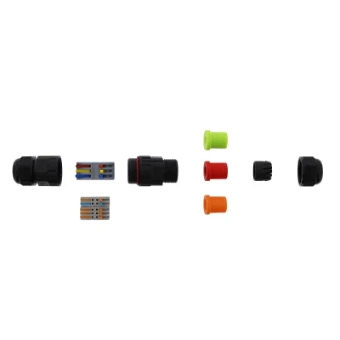

Kabelconnector I, IP68, 3/5 polig, Ø 6 - 14,5mm
- 3127-2608
- |
- 160110
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Kabelconnector I, IP68, 3/5 polig, Ø 6 - 14,5mm
Kabelconnector I, IP68, 3/5 polig, Ø 6 - 14,5mm
Ordercode YESSS
3127-2608
Product code
160110
EAN code
08716643079304
Product group
Circular connector for field assembly (industrial connector)
Brand
Klemko
Serie
Waterdichte connectoren
Type
KCI-IP68-3/5P-6-14,5
Product description
Kabelconnector I, IP68, 3/5 polig, Ø 6 - 14,5mm
Product specifications
Contact type
Other
Diameter connector
31 mm
Number of data contacts
0
Number of power contacts
5
Number of control contacts
0
For cable outer diameter
6 - 14.5 mm
Type of housing
Straight
Rated current In
24 A
Ambient temperature
-20 - 110 °C
Rated voltage
450 V
Connectable conductor cross section fine-strand without cable end sleeve
0.2 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.2 - 2.5 mm²
Connectable conductor cross section solid-core
0.2 - 2.5 mm²
Type of electric connection
Spring clamp connection
Material of contact surface
Brass
Housing material
Plastic
Material thread ring
Plastic
Type of locking
Gland nut
Inflammability class of insulation material according to UL94
V0
With protective conductor
No
Degree of protection (IP), mounted
IP68
Screened
No
With status indication
No
