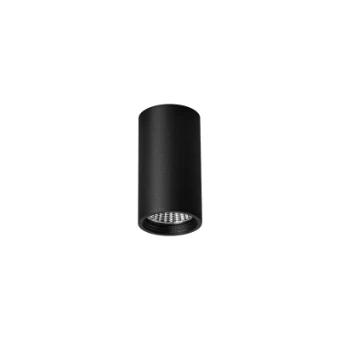

Ceiling-/wall luminaire Prolumia
Add to selection
General information
Ordercode YESSS
3016-8151
Product code
41100143
EAN code
08720615500765
Product group
Ceiling-/wall luminaire
Brand
Prolumia
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Housing material
Aluminium
Housing colour
Black
Material cover
Glass transparent
Type of grid
None
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Reflector
Light distribution
Symmetric
Beam angle
21-40° - Medium beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
50000 h
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-5 - 35 °C
Suitable for emergency lighting
No
With movement sensor
No
With light sensor
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Max. system power
14 W
Colour of light
White
Colour temperature
2700 - 2700 K
Colour rendering index CRI
90-100
Power factor
0.9
Height/depth
123 mm
Outer diameter
64 mm
Type of wiring
Ending
Connection type
Screwed terminal
Surface protection housing
Lacquered
Unified Glare Ratio (UGR)
14
Operation by Bluetooth
No
Suitable for wall mounting
No
