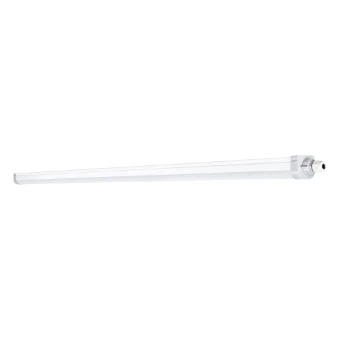

DAMP PROOF COMPACT GEN 2 1500 V 50W 840 IP66

Add to selection
General information
Ordercode YESSS
3088-4393
Product code
4058075740891
EAN code
04058075740891
Product group
Ceiling-/wall luminaire
Brand
LEDVANCE
Serie
DAMP PROOF COMPACT GEN 2
Type
DP COMP 1500 V 50W 840 IP66 PS
DAMP PROOF COMPACT GEN 2 1500 V 50W 840 IP66 DAMP PROOF COMPACT GEN 2 1500 V 50W 840 IP66 PS
STOCK
IN STOCK
0 piece
Product description

Moderne vochtbestendige armaturen met lumenschakelaar. Productkenmerken: Power select optie beschikbaar om te kiezen tussen 2 lumenpakketten. Levensduur (L80/B10): tot 50.000 uur (bij 25°C). Hoge lichtopbrengst: tot 123 lm/W. Polycarbonaat behuizing IP66 en IK08. Lichtstraalhoek: 120°. Productvoordelen: Zeer veelzijdig door beschikbare power select versies die 2 verschillende lumenpakketten mogelijk maken. Eenvoudige installatie aangezien montagebeugels vrij op het armatuur kunnen worden geplaatst. Gemakkelijke toegang tot elektrische terminal dankzij eindkappen met draai- en vergrendelmechanisme. Zonder gereedschap elektrische aansluiting door drukknopconnector. Gelijkmatig verdeeld licht. 5 jaar garantie. Toepassingsgebieden: Ideaal voor industriële- en opslagfaciliteiten. Autoparkeerplaatsen en onderdoorgangen. Garages. Werkplaatsen, assemblagelijnen. Technische uitrusting: Roestvrij stalen klemmen met inbegrepen veiligheidsschroeven. Montageaccessoires inbegrepen (ophangkit, diefstalbeschermingskit).

Product specifications
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
0
Lamp holder
Other
Housing material
Plastic
Housing colour
White
Material cover
Plastic, opal
Type of grid
Matt
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
Electronic ballast
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
Yes
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
75000 h
Impact strength
IK08
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Suitable for emergency lighting
No
With movement sensor
No
With light sensor
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
850 °C - 30 s
Max. system power
50 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
60 mm
Height/depth
53 mm
Length
1543 mm
Type of wiring
Ending
Number of poles
3
Connection type
Push-in clamp
Surface protection housing
Untreated
Nominal current
228 - 228 mA
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM5
Max. number of luminaires per miniature circuit breaker B16 (MCB)
33
Max. number of luminaires per miniature circuit breaker C16 (MCB)
44
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG0
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Dimmable
Yes
Luminaire efficacy
122 - 123 lm/W
Rated luminous flux according to IEC 62722-2- 1
4200 - 6100 lm
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP66
Max. number of luminaires per miniature circuit breaker C10 (MCB)
27
Ball-proof according to DIN 18032-3
No
Suitable for clamp-mounting
No
With switch
No
more specifications
