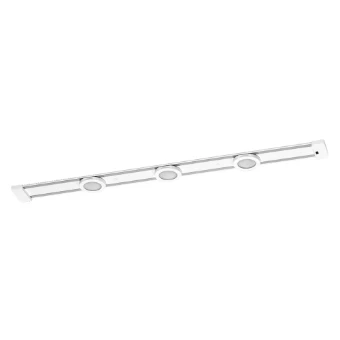

LINEAR LED MAGNET 3 Spot Sensor 9.5W DIM

Add to selection
General information
Ordercode YESSS
3108-2814
Product code
4058075575677
EAN code
04058075575677
Product group
Batten luminaire
Brand
LEDVANCE
Serie
LINEAR LED MAGNET
Type
Linear LED Magnet 3 Spot Sensor 9.5
LINEAR LED MAGNET 3 Spot Sensor 9.5W DIM LINEAR LED MAGNET 3 Spot Sensor 9.5W DIM
STOCK
IN STOCK
0 piece
Product description

Plat onderkastlicht, magnetische rail voor flexibele spotmontage. Productkenmerken: Kleurtemperatuur: 4.000 K. Productvoordelen: Gemakkelijke en snelle serieschakeling dankzij eenvoudig stekkersysteem. Helder modern design. Toepassingsgebieden: Onderkastverlichting. Alleen voor gebruik binnen. Schap- en onderkastverlichting. Keukens, werkruimten. Boekenplanken. Technische uitrusting: Complete montage- en verbindingsaccessoires inbegrepen. Veiligheidsadvies: Dit product is geen speelgoed. Het mag niet onbeheerd in de handen van kinderen worden achtergelaten of door kinderen worden bediend.. Niet bedoeld als vervanging voor conventionele verlichting in particuliere huishoudens.. Om het risico op verstrengeling te verkleinen, moet de flexibele bedrading die aan het armatuur is verbonden, effectief aan de muur worden bevestigd als de bedrading zich binnen handbereik bevindt..

Product specifications
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
0
Lamp holder
None
Material
Aluminium
Housing colour
White
Voltage type
AC
Nominal voltage
220 - 240 V
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
30000 h
Degree of protection (IP)
IP20
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
With switch
No
With movement sensor
Yes
Max. system power
9.5 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.5
Width
71 mm
Height/depth
59 mm
Length
645 mm
Type of wiring
Ending
Number of poles
2
Connection type
Other
Electrical connection with connector system
Yes
Exchangeable control gear
No
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal current
300 - 300 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Operation by Bluetooth
No
Compatible with Casambi
No
Luminaire efficacy
60 lm/W
Dimmable
Yes
Dimming DALI-2
No
With light sensor
No
Rated luminous flux according to IEC 62722-2- 1
600 - 600 lm
more specifications
