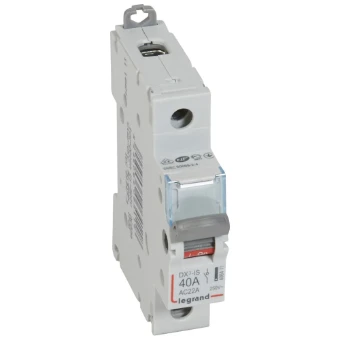

Switch disconnector (AC) Legrand
Add to selection
General information
Ordercode YESSS
2223-1813
Product code
406411
EAN code
03414971730748
Product group
Switch disconnector (AC)
Brand
Legrand
Product specifications
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
Yes
Version as emergency stop installation
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
250 V
Rated operating voltage
0 - 690 V
Rated permanent current Iu
40 A
Rated short-time withstand current lcw
0.75 kA
Conditioned rated short-circuit current Iq
4500 kA
Number of poles
1
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Colour control element
Grey
Type of control element
Wing knob
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Width
17.5 mm
Height
83 mm
Depth
70.2 mm
