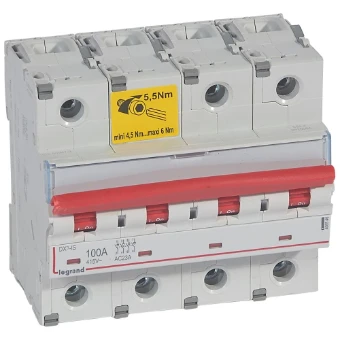

Switch disconnector (AC) Legrand
Add to selection
General information
Ordercode YESSS
2223-1873
Product code
406546
EAN code
03245064065467
Product group
Switch disconnector (AC)
Brand
Legrand
Product specifications
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
Yes
Version as reversing switch
No
Max. rated operation voltage Ue AC
415 V
Rated operating voltage
48 - 415 V
Rated permanent current Iu
100 A
Rated permanent current at AC-21, 400 V
100 A
Rated short-time withstand current lcw
1 kA
Rated operation power at AC-23, 400 V
40 kW
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
3
Motor drive optional
Yes
Motor drive integrated
No
Voltage release optional
Yes
Device construction
Complete device in housing
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Colour control element
Red
Type of control element
Wing knob
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Width
70.8 mm
Height
83 mm
Depth
70.2 mm
Product information
