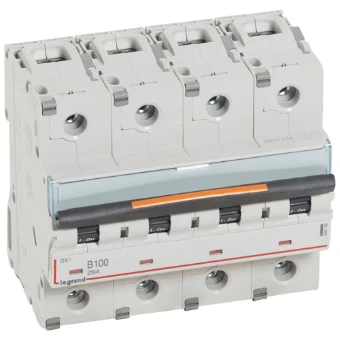

Installatieautomaat DX3 4P B100A 25kA, 6modules
Add to selection
General information
Ordercode YESSS
1748-6941
Product code
409750
EAN code
03245064097505
Product group
Miniature circuit breaker (MCB)
Brand
Legrand
Serie
Installatieautomaten
Type
Legrand 409750
Installatieautomaat DX3 4P B100A 25kA, 6modules
Installatieautomaat DX3 4P B100A 25kA, 6modules
STOCK
IN STOCK
0
piece
Product specifications
Release characteristic
B
Number of poles (total)
4
Number of protected poles
4
Rated current
100 A
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
6 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25 kA
Voltage type
AC
Frequency
50 - 60 Hz
Current limiting class
3
Concurrently switching neutral conductor
Yes
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
6
Built-in depth
47 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 70 °C
Connectable conductor cross section multi-wired
6 - 50 mm²
Connectable conductor cross section solid-core
6 - 70 mm²
Flush-mounted installation
Yes
Explosion-proof
No
