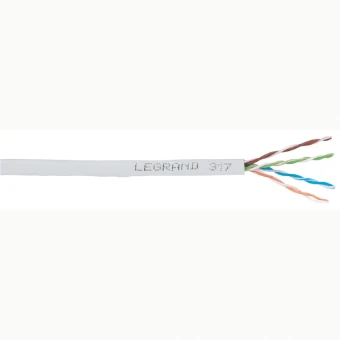

LCS Datakabel U/UTP Cat5e PVC 100MHz 305 mtr in doos
Add to selection
General information
Ordercode YESSS
0161-8540
Product code
032751
EAN code
03414970629722
Product group
Data and communication cable
Brand
Legrand
Serie
LCS3 Copper
Type
Legrand 032751
LCS Datakabel U/UTP Cat5e PVC 100MHz 305 mtr in doos
LCS Datakabel U/UTP Cat5e PVC 100MHz 305 mtr in doos Eca
STOCK
IN STOCK
0 meter
Product specifications
Conductor surface
Bare
Diameter conductor
0.5 mm
Nominal cross section conductor
0.2 mm²
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Polyethylene (PE)
Core identification
Colour
Screen over stranding element
None
Stranding
Bundle
Screen over stranding
None
Longitudinal water blocking cable
No
Radial water blocking cable
Yes
Protective sheath
None
Material outer sheath
Polyvinyl chloride (PVC)
Specification material outer sheath
Polyethylene (PE)
Colour outer sheath
Grey
Reaction-to-fire according to EN 13501-6: Class
Eca
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Halogen free according to EN IEC 60754-2
No
Low smoke according to EN IEC 61034-2
No
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
4.9 mm
Min. permitted bending radius, moving application with forced guidance
40 mm
Min. permitted bending radius, moving application/free movement
20 mm
Min. permitted bending radius, stationary application/permanent installation
25 mm
Permitted cable outer temperature during assembling/handling
0 - 50 °C
Permitted cable outer temperature after assembling without vibration
-20 - 60 °C
Category
5E
NVP value
66 %
Suitable for underground installation
No
Conductor material
Copper
AWG size
24
Core identification according to HD 308 S2
No
Approved type of underground installation
Other
Armouring/reinforcement
None
Cable geometry
Round
Certified for shipboard application
No
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
No
Weight
30 kg/km
Cable type
U/UTP
Drain wire
No
Cable width approximate
4.6 mm
Cable height approximate
4.6 mm
Characteristic impedance
100 Ohm
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
No
Flame retardant according to IEC 60332-3-22 (Cat A)
No
Flame retardant according to IEC 60332-3-23 (Cat B)
No
Flame retardant according to IEC 60332-3-24 (Cat C)
No
Flame retardant according to IEC 60332-3-25 (Cat D)
No
Halogen free according to EN IEC 60754-1
No
Halogen free according to EN IEC 60754-3
No
Circuit integrity according to IEC 60331-23
No
Duplex
No
Suitable for use as security alarm cable
No
With rip cord
No
