General information

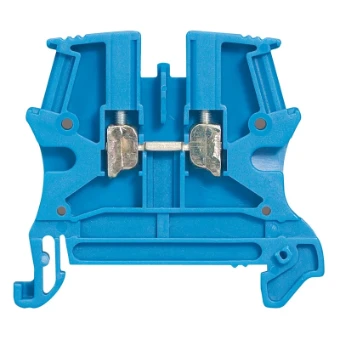

Rijgklem Viking3 16mm2 blauw
Rijgklem Viking3 16mm2 blauw
Ordercode YESSS
0774-3814
Product code
037104
EAN code
03414971444461
Product group
Feed-through terminal block
Brand
Legrand
Serie
Rijgklem
Type
Legrand 037104
Product description
Rijgklem Viking³ 16mm² blauw enkelvoudige doorverbinding 1 ingang/1 uitgang. Geschikt voor aansluiting van massieve of soepele draad. 2 mogelijkheden voor het aanbrengen van doorverbindingsstrips t/m klemdikte van 8mm.
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
1.5 - 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve
4 - 16 mm²
Connectable conductor cross section solid-core
1.5 - 25 mm²
Connectable conductor cross section multi-wired
4 - 16 mm²
Rated current In
76 A
Rated voltage
800 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
-5 - 40 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Blue
Internally connected stages
No
Width
12 mm
Height
63 mm
Depth
57 mm
Inflammability class of insulation material according to UL 94
V2
