General information

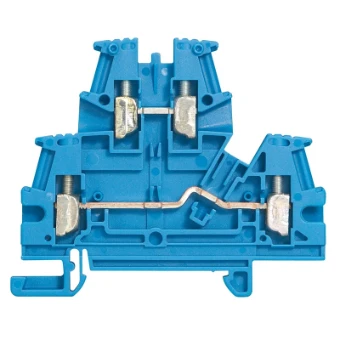

Rijgklem 2etages Viking3 4mm2 blauw
Rijgklem 2etages Viking3 4mm2 blauw
Ordercode YESSS
0774-3823
Product code
037108
EAN code
03414971444546
Product group
Feed-through terminal block
Brand
Legrand
Serie
Rijgklem
Type
Legrand 037108
Product description
Rijgklem 2etages Viking³ 4mm² blauw, 2 enkelvoudige doorverbindingen. Geschikt voor aansluiting van massieve of soepele draad. 2 mogelijkheden voor het aanbrengen van doorverbindingsstrips t/m klemdikte van 8mm.
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section solid-core
0.25 - 6 mm²
Connectable conductor cross section multi-wired
0.25 - 4 mm²
Rated current In
32 A
Rated voltage
500 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
-5 - 40 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Blue
Internally connected stages
No
Width
6 mm
Height
62.5 mm
Depth
75 mm
Inflammability class of insulation material according to UL 94
V2
