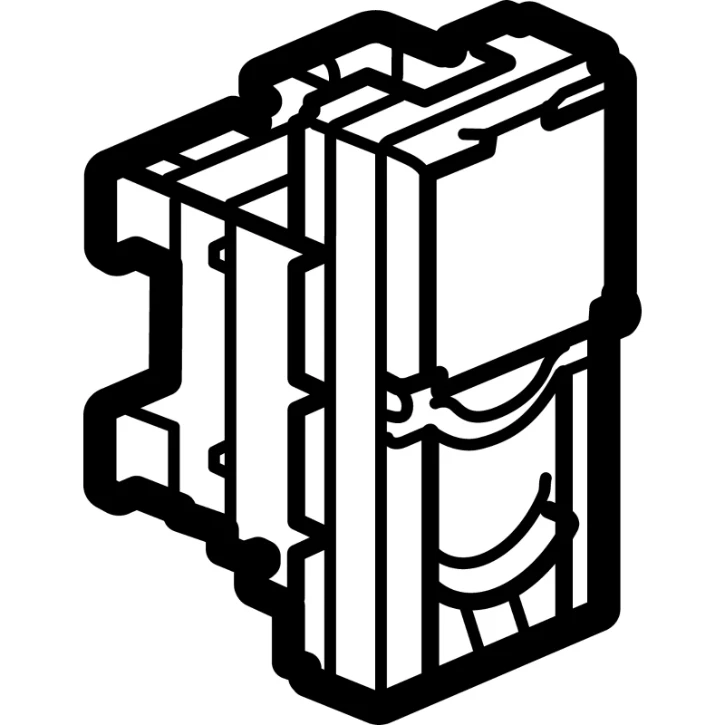

Mosaic Connector Cat6A STP RJ45 1 module breed Wit
- 0848-3749
- |
- 076573
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Mosaic Connector Cat6A STP RJ45 1 module breed Wit
Mosaic Connector Cat6A STP RJ45 1 module breed Wit
Ordercode YESSS
0848-3749
Product code
076573
EAN code
03414971531796
Product group
Data communication connection box copper (twisted pair)
Brand
Legrand
Serie
Schakelmateriaal
Type
Legrand 076573
Product description
Product specifications
Surface mounting
No
Duct installation
Yes
Floor box/subfloor mounted
Yes
Type of fastening
Engage (snap)
Assembly arrangement
Modular device for domestic switching devices
Type of connector
RJ45 8(8)
With buses/couplings
Yes
Suitable for number of connectors
1
Category
6A (IEC)
Colour
White
RAL-number
9003
Connection type
Insulation displacement connector
Shielded buses
Yes
Separate earthing connection
No
With label space
Yes
Compatible with third-party covers
Yes
Separate strain relief
No
Mounting method shielding connection
Other
Outlet direction
Straight
With dust cover
Yes
Degree of protection (IP)
IP20
Colour coding
Yes
Device width
22.5 mm
Device height
45 mm
Device depth
39.5 mm
Flush-mounted installation
Yes
Number of modules (module system)
1
