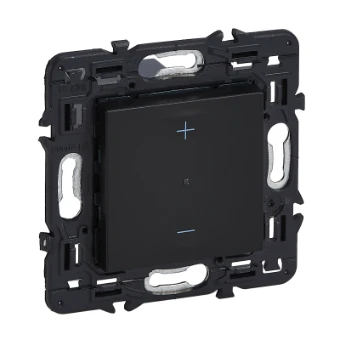

Dimmer Legrand
Add to selection
General information
Ordercode YESSS
3099-0659
Product code
741490A
EAN code
03414972405201
Product group
Dimmer
Brand
Legrand
Product specifications
Assembly arrangement
Basic element with complete housing
Method of operation
Push button
App control via Bluetooth
No
Dimming phase cut-on (leading edge)
Yes
Dimming phase cut-off (trailing edge)
Yes
Serial dimmer
No
Type of load
Universal and LED Retrofit
Substation input
Yes
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Black
RAL-number (similar)
9017
Transparent
No
Suitable for degree of protection (IP)
IP20
Impact strength
IK04
Nominal voltage
110 - 240 V
Frequency
50 - 60 Hz
Control voltage
110 - 240 V
Connection type
Screwed terminal
Core cross section
1.5 - 2.5 mm²
Device width
74 mm
Device height
74 mm
Device depth
44.5 mm
Min. depth of built-in installation box
40 mm
Nominal power resistive load
0 - 150 W
Nominal power inductive load
0 - 150 VA
Nominal power capacitive load
0 - 150 VA
Max. switching power LED
150 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Min. brightness controllable
Yes
Power consumption
0.7 W
