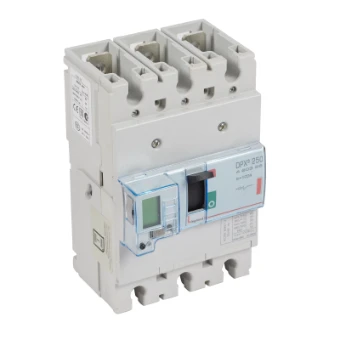

DPX3 250 electronisch 3P 100A kortsluitafsch.36kA
Add to selection
General information
Ordercode YESSS
1748-7982
Product code
420335
EAN code
03245064203357
Product group
Power circuit-breaker for trafo/generator/installation protection
Brand
Legrand
Serie
Vermogensschakelaar
Type
Legrand 420335
DPX3 250 electronisch 3P 100A kortsluitafsch.36kA
DPX3 250 electronisch 3P 100A kortsluitafsch.36kA
STOCK
IN STOCK
0
piece
Product specifications
Rated permanent current Iu
100 A
Rated voltage
220 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
36 kA
Overload release current setting
40 - 100 A
Adjustment range short-term delayed short-circuit release
60 - 1000 A
Adjustment range undelayed short-circuit release
60 - 1000 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
Yes
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
1
With switched-off indicator
Yes
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Wing knob
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP30
With integrated under voltage release
Yes
