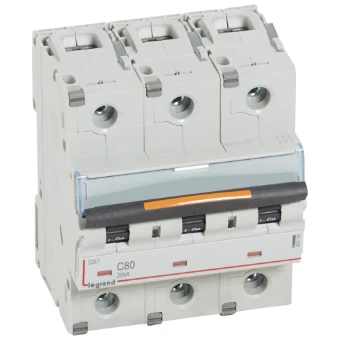

Installatieautomaat DX3 3P C80A 25kA, 4.5modules
Add to selection
General information
Ordercode YESSS
1748-7046
Product code
409788
EAN code
03245064097888
Product group
Miniature circuit breaker (MCB)
Brand
Legrand
Serie
Installatieautomaten
Type
Legrand 409788
Installatieautomaat DX3 3P C80A 25kA, 4.5modules
Installatieautomaat DX3 3P C80A 25kA, 4.5modules
STOCK
IN STOCK
0
piece
Product specifications
Release characteristic
C
Number of poles (total)
3
Number of protected poles
3
Rated current
80 A
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
6 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25 kA
Voltage type
AC
Frequency
50 - 60 Hz
Current limiting class
3
Concurrently switching neutral conductor
No
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
4.5
Built-in depth
47 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 70 °C
Connectable conductor cross section multi-wired
6 - 50 mm²
Connectable conductor cross section solid-core
6 - 70 mm²
Flush-mounted installation
Yes
Explosion-proof
No
Product information
