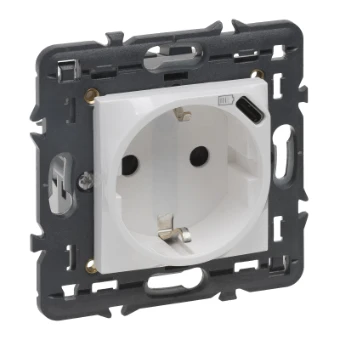

Socket outlet Legrand
Add to selection
General information
Ordercode YESSS
3049-8830
Product code
741234
EAN code
03414971463738
Product group
Socket outlet
Brand
Legrand
Product specifications
Model
Socket outlet with protective contact CEE 7/3 (type F)
Number of active contacts (round)
2
Number of active contacts (flat)
0
With signal lamp
No
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9003
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
Other
Mounting method
Flush-mounted
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Anti-bacterial treatment
No
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
230 V
Frequency
50 - 60 Hz
Rated fault current
2400 mA
Suitable for degree of protection (IP)
IP40
Impact strength
IK04
Device width
74 mm
Device height
74 mm
Device depth
44.5 mm
Min. depth of built-in installation box
40 mm
Metallic colour
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
For heavy conditions according to VDE
No
Number of ports USB-A
0
Number of ports USB-C
1
Colour of switch operator
White
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
Concurrently switching neutral conductor
No
Protective contact
Other
Number of active contacts (square)
0
Product information
