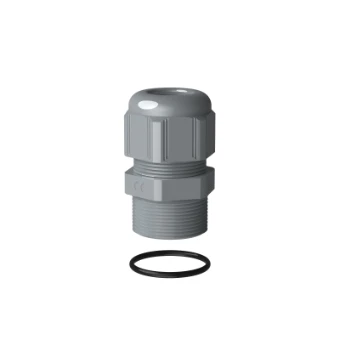

Cable gland Legrand
Add to selection
General information
Ordercode YESSS
3085-3609
Product code
381596
EAN code
03414972366915
Product group
Cable gland
Brand
Legrand
Product specifications
Thread type
Metric
Nominal thread size metric/PG
20
Nominal thread size inch/gas pipe thread
Other
Pitch thread
1.5 mm
Thread length
24 mm
Wrench width
26 mm
Hexagon angular dimension
26.5 mm
Suitable for cable diameter
6 - 12 mm
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Halogen free
Yes
Glass-fibre reinforced
No
Degree of protection (IP)
IP68
Shock resistant
Yes
Colour
Grey
RAL-number
7040
Bend radius protection/trumpet flare
No
With locknut
Yes
Snapping in opening
Yes
Model
Straight
Multi seal area
No
Flat cable coupling
No
With strain relief
No
Type of sealing
Sealing ring
Separable screw gland
No
Operating temperature
-20 - 80 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
EMC-version
No
Screened
No
