General information

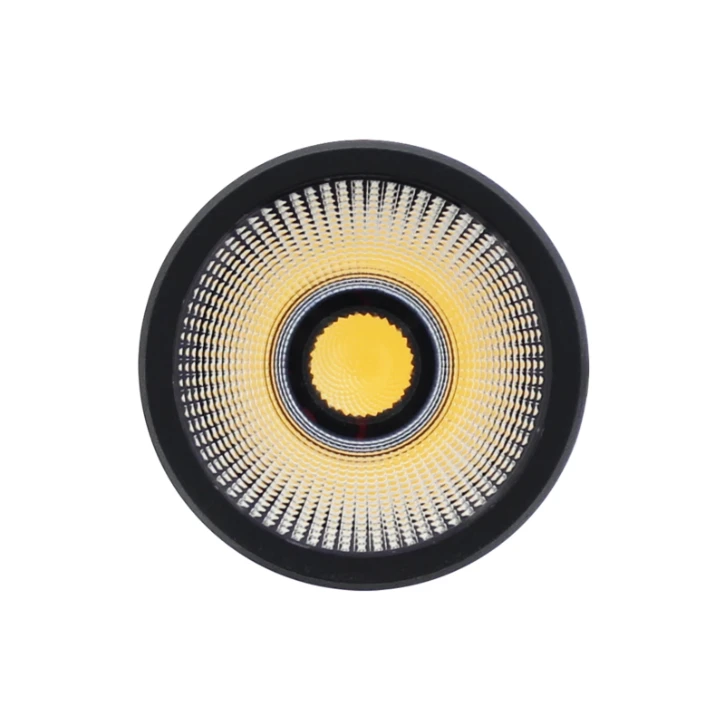

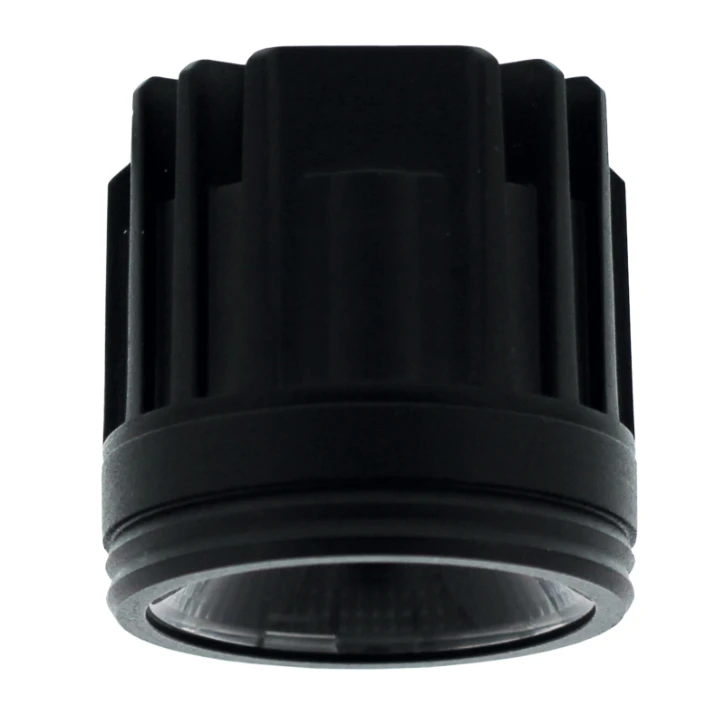

Bolero LED module, 6.6W, 700mA, 795 lumen, 2700K, 30° lens
Bolero LED module, 6.6W, 700mA, 795 lumen, 2700K, 30° lens
Ordercode YESSS
3002-9915
Product code
868500
EAN code
08716643062092
Product group
LED-module
Brand
Lumiko
Serie
Lumiko modulair spots
Type
LED-7W-MOD30-EWW
Product description
Bolero LED module, 6.6W, 700mA, 795 lumen, 2700K, 30° lens
Product specifications
Lamp power
6.6 - 6.6 W
Voltage type
DC
Suitable for constant current
Yes
Suitable for constant voltage
No

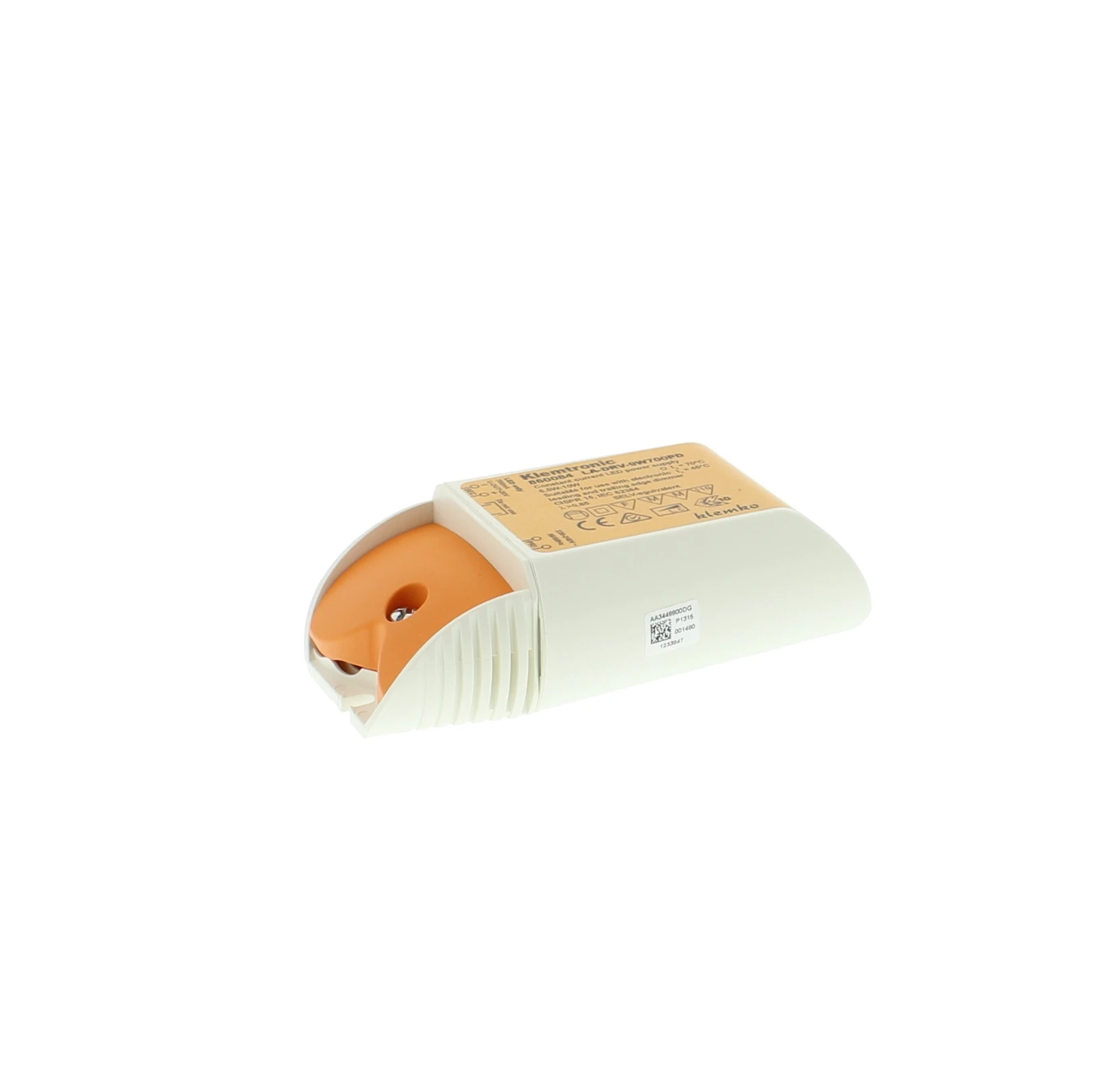

External driver required
Yes
Operating current
0 - 700 mA
Operating voltage
9.4 - 9.4 V
Lamp voltage
9.4 - 9.4 V
Luminous flux
0 - 795 lm
Number of LEDs
1
Shape
Round
Colour
White
Colour of light according to EN 12464-1
Warm white < 3300 K
Connection type
Other
Suitable for general lighting
Yes
Suitable for traffic lights
No
Suitable for variable road signs
No
Suitable for rail traffic
No
Suitable for matrix information boards
No

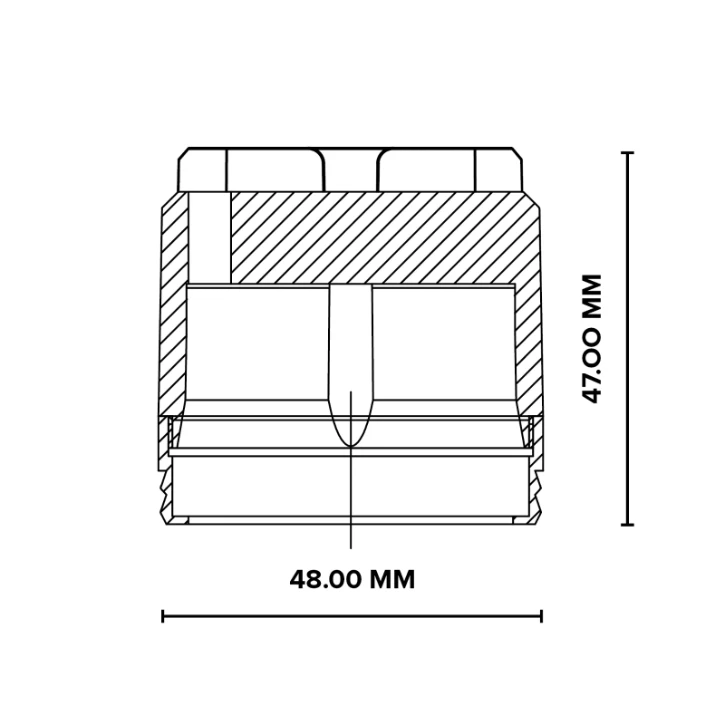

Length
48 mm
Width
48 mm
Height
47 mm
Diameter
48 mm
Degree of protection (IP)
IP44
Average nominal lifetime
50000 h
Specific luminous efficacy
0 - 120 lm/W

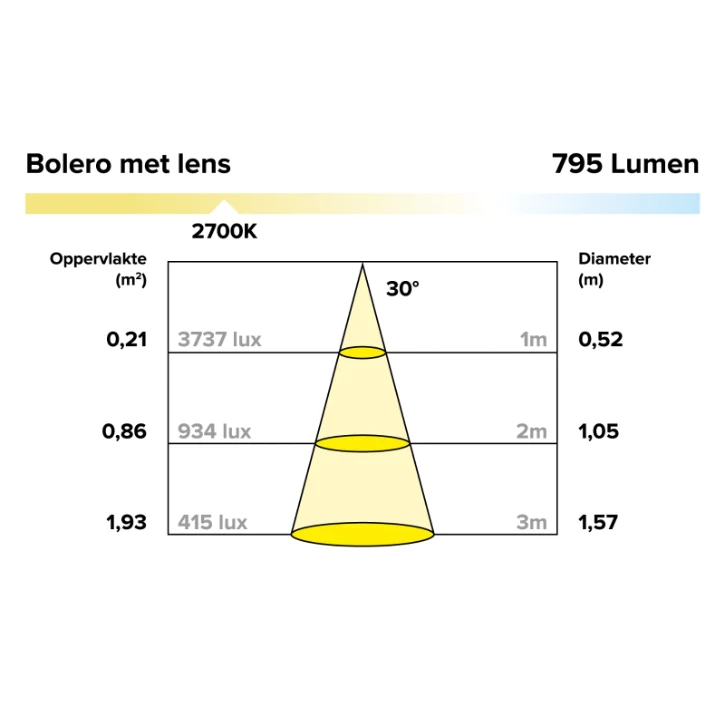

Beam angle
30 - 30 °
Colour consistency (McAdam ellipse)
SDCM1
IFTTT support available
No
Energy efficiency class according to EU regulation 2019/2015
E
Colour temperature
2700 - 2700 K
Housing colour
Black
