General information

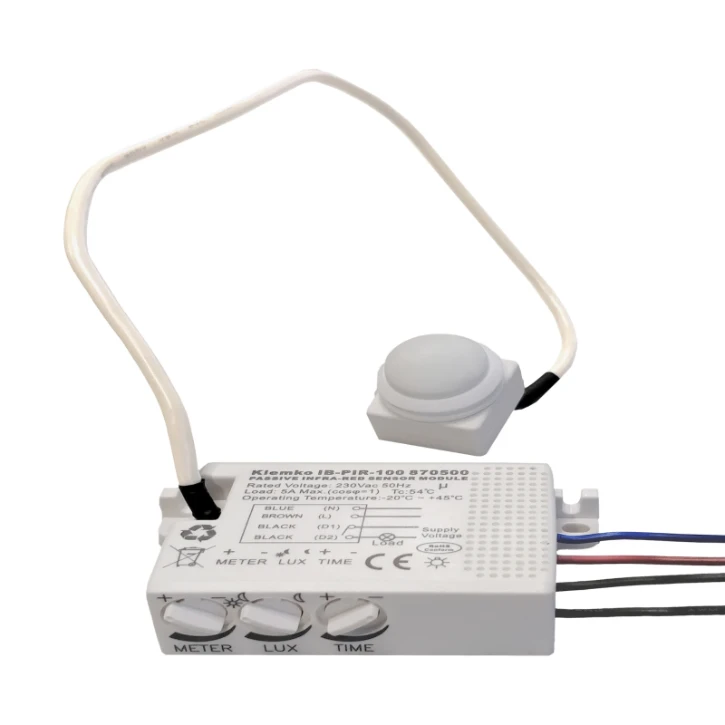

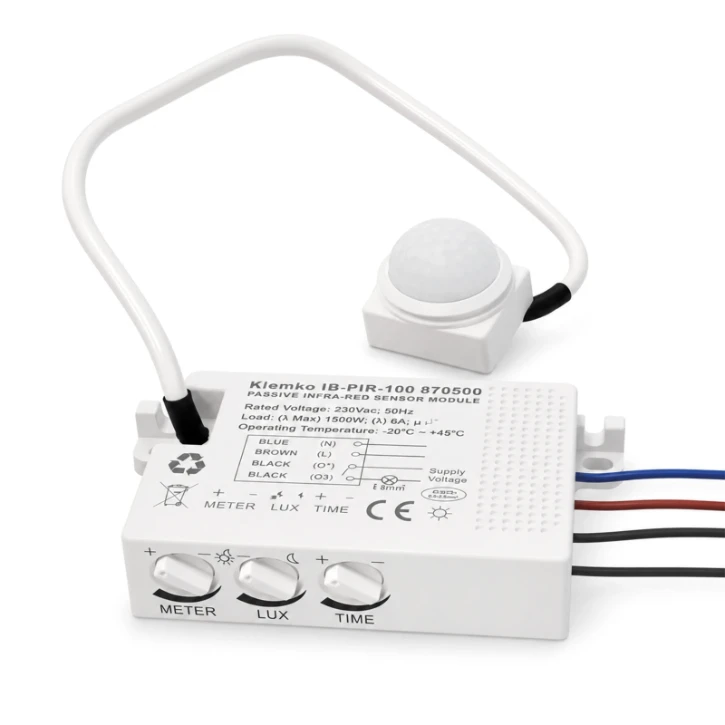

PIR Bewegingsmelder Inbouw 1000W 360° ø=6M
PIR Bewegingsmelder Inbouw 1000W 360° ø=6M
Ordercode YESSS
0069-5362
Product code
870500
EAN code
08716643000698
Product group
Movement sensor/presence detector complete
Brand
Lumiko
Serie
Sensoren
Type
IB-PIR-100
Product description
PIR Bewegingsmelder Inbouw 1000W 360° ø=6M
Product specifications
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Networkable
No
Scan angle
100 °
Optimum mounting height
2.5 m
Max. reach sideways
6 m
Max. presence range
30 m²
Diameter reach on floor
6 m
Suitable for wireless transmission
No
Remote operation
No
With remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Connection type
Open end
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Anti-bacterial treatment
No
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP55
Voltage type
AC
Frequency
50 - 60 Hz
Min. switch-on time
6 s
Max. duty cycle
20 min
Detection angle horizontal
1 - 100 °
Response value luminosity
5 - 10000 lx
Max. switching power
1000 W
Number of switching zones
1
Max. starting current
78 A
With alarm function
No
Width
82 mm
Height
20.5 mm
Depth
45 mm
Built-in diameter
22 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
220 - 240 V
Suitable for wall mounting
No
With acoustic sensor
No
With connection cable
No
Ceiling built-in mounting without installation box
Yes
Compatible with Casambi
No
Movement sensor/presence detector technology
Passive infrared
