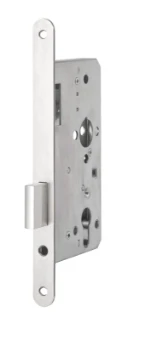

Mortice door lock Maasland Groep
Add to selection
General information
Ordercode YESSS
1864-0315
Product code
E-3160NR20
EAN code
08718734027539
Product group
Mortice door lock
Brand
Maasland Groep
Product specifications
Safety lock
No
Narrow door lock
No
Opening direction according to DIN
Left/right
Mandrel size
60 mm
Height lock case
165 mm
Width lock case
15 mm
Depth lock case
89 mm
With strike plate
No
With strike box
No
Material of forend
Stainless steel
Forend shape
Round
Length forend
235 mm
Width forend
20 mm
Thickness forend
3 mm
Bolt width
10 mm
Distance
72 mm
Follower square
Other
Shift function
No
Panic function
No
Application class according to DIN 18251-1
Class 3
Type of lock
Deadbolt
Actuation of lock
Key actuation
Type of keyhole
Profile cylinder
Number of locking points
1
Suitable as lock for emergency exit doors
No
Mechanical lock
Yes
Mechanical self-locking
No
Magnetic self-locking
No
Motoric self-locking
No
Mechanical unlock
Yes
Motoric unlocking
No
Basic colour forend
Stainless steel
Surface protection forend
Other
Forend angled
No
Deadbolt-throw
Double-throw
Deadbolt throw (size)
22 mm
Deadbolt position
Concise
Type of deadbolt
Other
Material deadbolt
Steel
Latch throw
0 mm
Latch Position
Other
Type of latch
Standard latch
Material of latch
Other
Latch holdback
None
Rear backset
29 mm
Type of follower
Other
Type of lock case
Open
Surface protection lock case
Galvanised
Supply voltage
0 - 0 V
Electricity consumption
0 A
Monitoring contact
No
Compressive strength
0 N
Utility category according to EN 12209
None
Lasting functionability and load of latch according to EN 12209
None
Mass of door, clamp force according to EN 12209
None
Suitable for usage at smoke- and fire protection doors acc. to EN 15684:2013
None
Safety - burglary protection according to EN 12209
None
Environmental condition according to EN 12209
None
Door related application according to EN 12209
None
Locking mechanism according to EN 12209
None
Degree of protection (IP)
Other
VdS class
Other
German approval EltVTR
No
Suitable according to DIN 4102
No
Suitable according to DIN EN 1634
No
Suitable for burglary-resistance according to DIN EN 1627
Other
Operating principle
Other
