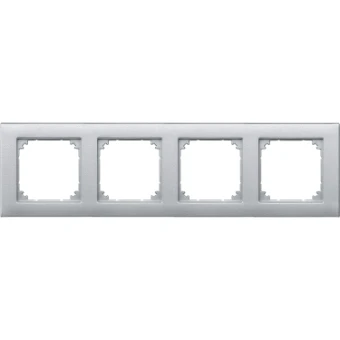

Afdekraam - M-Plan - Systeem M - 4-voudig - Kunststof

Add to selection
General information
Ordercode YESSS
1874-1697
Product code
486460
EAN code
04011281895410
Product group
Cover frame for domestic switching devices
Brand
Merten by Schneider Electric
Serie
Merten System M (brand Merten)
Type
Afdekraam schakelmateriaal
Afdekraam - M-Plan - Systeem M - 4-voudig - Kunststof Afdekraam - M-Plan - Systeem M - 4-voudig - Kunststof - Aluminium
STOCK
IN STOCK
0 piece
Product description

Schneider Electric Merten M-Plan afdekframe 486460 is van aluminium kleur en 4 moduleplaatsen. Dit afdekframe kan zowel in horizontale als verticale positie worden geïnstalleerd. Het afdekframe is gemaakt van polycarbonaat, waardoor het zo resistent mogelijk is. Dit afdekframe behoort tot de M-Plan aesthetic groep. Bovendien is het halogeenvrij, wat goed is voor uw gezondheid. Het bereikt ook IP20 beschermingsgraad. Deze cover frame is milieuvriendelijk en is ook een groen premium product. Het is kwikvrij De System M-serie is gebaseerd op 4 verschillende oppervlakken en materialen. Met 9 verschillende ontwerpvariaties en meer dan 280 functies kan het systeem aan elke vraag van de klant voldoen.

Product specifications
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
4
Number of modules horizontal (module system)
0
Number of modules vertical (module system)
0
With mounting grid
No
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
No
Label space/information surface
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Aluminium
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP20
Impact strength
IK02
Type of fastening
Clamping/screw mounting
Width
85.8 mm
Height
297 mm
Depth
10.1 mm
Built-in width
0 mm
Built-in height
0 mm
Diameter bore hole (opening)
60 mm
