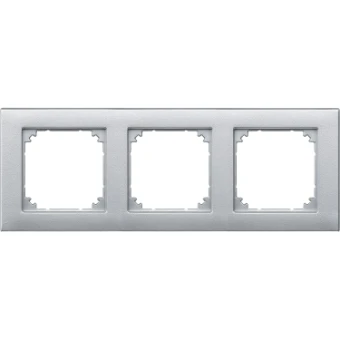

"Afdekraam - M-Plan II - Drievoudig - Verzonken - Aluminium"

Add to selection
General information
Ordercode YESSS
3018-8296
Product code
488360
EAN code
04011281898886
Product group
Cover frame for domestic switching devices
Brand
Merten by Schneider Electric
Serie
Merten System M (brand Merten)
Type
Afdekraam schakelmateriaal
"Afdekraam - M-Plan II - Drievoudig - Verzonken - Aluminium" "Afdekraam - M-Plan II - Drievoudig - Verzonken - Aluminium"
STOCK
IN STOCK
0 piece
Product description

Schneider Electric Merten M-Plan II afdekframe 488360 is in kleur aluminium met 3 stellen. Dit afdekframe kan zowel in horizontale als in verticale positie worden geïnstalleerd. Het afdekframe is gemaakt van polycarbonaat, waardoor het zo bestendig mogelijk is. Dit afdekframe behoort tot de esthetische groep M-Plan II. Bovendien is het halogeenvrij, wat goed is voor uw gezondheid. Bovendien is de IP-klasse van dit apparaat IP20. Bovendien is dit toestel gekwalificeerd als een grene premium product, met een minimaal gebruik van gevaarlijke stoffen. En het is kwikvrij De system m is gebaseerd op 4 verschillende oppervlakken en materialen. Met 9 verschillende ontwerpvariaties en meer dan 280 functies kan het systeem aan elke vraag van de klant voldoen.

Product specifications
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
3
Number of modules horizontal (module system)
0
Number of modules vertical (module system)
0
With mounting grid
No
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
No
Label space/information surface
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Aluminium
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP20
Type of fastening
Clamping/screw mounting
Width
85.8 mm
Height
225.8 mm
Depth
12.5 mm
Built-in width
85.8 mm
Built-in height
225.8 mm
Diameter bore hole (opening)
60 mm
Flush-mounted installation
Yes
