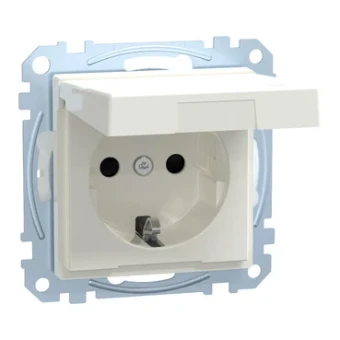

Systeem M - WCD - Klapdeksel - IP44 - Kinderbeveiliging

1873-8796
|
MEG2314-0319

0 piece in stock

Don’t have an account? Request account

Over 6.000 products in stock
Order before 17:00 and receive your order the next working day!
Need help? Call --- --- or contact us via email at [email protected]

General information

Systeem M - WCD - Klapdeksel - IP44 - Kinderbeveiliging Systeem M - WCD - Klapdeksel - IP44 - Kinderbeveiliging - Polarwit

Ordercode YESSS

1873-8796

Product code

MEG2314-0319

EAN code

04042811139810

Product group

Socket outlet

Brand

Merten by Schneider Electric

Serie

Merten System M (brand Merten)

Type

Socket outlet

Product description

Schneider Electric Merten System M stopcontact MEG2314-0319 is een mechanisme met centrale plaat in kleur poolwit. Dit stopcontact behoort tot de M-Arc, M-Elegance, M-Plan, M-Plan glas, M-Smart, M-Star, System M aesthetic groep. De uitgangspool configuratie van deze contactdoos is 2P + E. En het wordt gebruikt in Duitsland. Dit stopcontact is met scharnierend deksel. De nominale stroom van dit stopcontact is 16A. 250 V is de nominale bedrijfsspanning. De bevestigingswijze is met schroeven en klauwen. De montagedoos kan met verzonken type in het oppervlak worden verzonken. Deze contactdoos is gemaakt van polycarbonaat materiaal en is zeer betrouwbaar en bestendig. Het bereikt ook IP20 beschermingsgraad. Als een green premium product is dit apparaat ook milieuvriendelijk. Deze wandcontactdoos is ook vrij van SVHC (zeer zorgwekkende stoffen). Het is halogeenvrij. Bovendien is dit stopcontact speciaal ontworpen voor woningen, kleine commerciële winkels, zodat de dagelijkse behoeften ee

Product specifications

Model

Socket outlet with protective contact CEE 7/3 (type F)

Number of active contacts (round)

With signal lamp

Number of phases

Imprint/indication

None

Connection type

Push-in clamp

With hinged lid

Yes

With enhanced contact protection

Yes

Label space/information surface

Colour

White

RAL-number (similar)

9010

Transparent

Lockable

Eject-mechanism

Insulated mounting

Yes

With function lighting

With orientation lighting

Overvoltage protection

Fault current protection

With miniature fuse

Special power supply

None

Mounting method

Flush-mounted

Type of fastening

Mounting with claw and screw

Material

Plastic

Material quality

Thermoplastic

Halogen free

Yes

Surface protection

Untreated

Surface finishing

Glossy

Anti-bacterial treatment

With on/off switch

With loop through function

Yes

Rotated central insert

Nominal current

16 A

Nominal voltage

250 V

Frequency

50 - 50 Hz

Rated fault current

0 mA

Suitable for degree of protection (IP)

IP44

Impact strength

IK03

Device width

71 mm

Device height

71 mm

Device depth

47 mm

Min. depth of built-in installation box

40 mm

Metallic colour

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

For heavy conditions according to VDE

With Wi-Fi signal repeater

With built-in bluetooth speaker

Compliant with UK Building Regulations Part M

Concurrently switching neutral conductor

Protective contact

Earthing clips

Number of loop throughs

Number of socket outlets

Socket outlets phase-separated

Assembly arrangement

Basic element with central cover plate

Manufacturer's website
