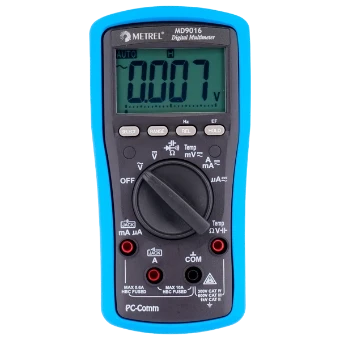

Multimeter Metrel
Add to selection
General information
Ordercode YESSS
3084-5730
Product code
MD9016
EAN code
03831063419891
Product group
Multimeter
Brand
Metrel
Product specifications
Indication
Digital
Multiple display
Yes
Measuring range selection
Automatic
Max. voltage measuring range AC
600 V
Lowest resolution, AC voltage
0.01 mV
Max. voltage measuring range DC
1000 V
Lowest resolution, DC voltage
0.01 mV
Max. current measuring range, AC
10 A
Lowest resolution, AC current
0.1 µA
Max. current measuring range, DC
10 A
Lowest resolution, DC current
0.1 µA
Max. resistance measuring range
60 M Ohm
Milliohm measurement with 4 wire technique (Kelvin connection)
No
Lowest resolution, resistance
0.1 Ohm
Capacitance measurement
Yes
Max. capacitance measuring range
3000 µF
Lowest resolution, capacitance
Other
Max. frequency measuring range
50 kHz
Lowest resolution, frequency
Other
Resistance test/diode test
Yes
Isolation resistance measuring range
0.6 - 60 M Ohm
Nominal test voltage 10 V
No
Nominal test voltage 50 V
No
Nominal test voltage 100 V
No
Nominal test voltage 250 V
No
Nominal test voltage 500 V
No
Nominal test voltage 1000 V
No
Cable length measurement
No
Cable symmetry testing for two wire connections a-b-E
No
Power and energy measurement
No
Harmonics analysis/power quality
No
With decibel measurement (dB)
No
Relative value measurement
Yes
Inductance measurement
No
With conductivity measurement
No
Continuity test
Yes
Data hold
Yes
Max. value storage
No
Min. value storage
No
Peak value memory
No
True RMS measurement
No
Duty cycle measurements
No
Rotational speed measuring
No
Interface
Yes
Bluetooth interface
No
IR interface
No
Measuring circuit category
CAT IV
Max. voltage measuring circuit category
1000 V
Degree of protection (IP)
IP40
Current supply
Battery
Product information
