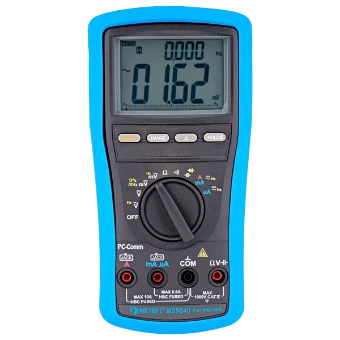

Multimeter Metrel
Add to selection
General information
Ordercode YESSS
3073-4984
Product code
MD9040
EAN code
03831063413707
Product group
Multimeter
Brand
Metrel
Product specifications
Indication
Digital
Multiple display
Yes
Measuring range selection
Automatic
Max. voltage measuring range AC
1000 V
Lowest resolution, AC voltage
0.01 mV
Max. voltage measuring range DC
1000 V
Lowest resolution, DC voltage
0.01 mV
Max. current measuring range, AC
10 A
Lowest resolution, AC current
0.01 µA
Max. current measuring range, DC
10 A
Lowest resolution, DC current
0.01 µA
Max. resistance measuring range
60 M Ohm
Milliohm measurement with 4 wire technique (Kelvin connection)
No
Lowest resolution, resistance
0.1 Ohm
Capacitance measurement
Yes
Max. capacitance measuring range
25000 µF
Lowest resolution, capacitance
Other
Max. frequency measuring range
20 kHz
Lowest resolution, frequency
Other
Resistance test/diode test
Yes
Isolation resistance measuring range
0.6 - 60 M Ohm
Nominal test voltage 10 V
No
Nominal test voltage 50 V
No
Nominal test voltage 100 V
No
Nominal test voltage 250 V
No
Nominal test voltage 500 V
No
Nominal test voltage 1000 V
No
Cable length measurement
No
Cable symmetry testing for two wire connections a-b-E
No
Power and energy measurement
No
Harmonics analysis/power quality
No
With decibel measurement (dB)
No
Relative value measurement
Yes
Inductance measurement
No
With conductivity measurement
No
Continuity test
Yes
Data hold
Yes
Max. value storage
Yes
Min. value storage
Yes
Peak value memory
No
True RMS measurement
Yes
Duty cycle measurements
No
Rotational speed measuring
No
Interface
No
Measuring circuit category
CAT IV
Max. voltage measuring circuit category
1000 V
Current supply
Battery
