LED driver - NatureConnect
Add to selection
General information
Ordercode YESSS
3108-5735
Product code
8718699850494
EAN code
08718699850494
Product group
LED driver
Brand
NATURECONNECT
Serie
NatureConnect
Type
Inbouwarmatuur
LED driver - NatureConnect
LED driver - NatureConnect
STOCK
IN STOCK
0
piece
Product description
NatureConnect NatureConnect Het NatureConnect-systeem bootst natuurlijk daglicht na door de dagelijkse patronen van de zon te simuleren en een weergave van de hemel na te bootsen. Lichtrecepten verhogen het energieniveau en zorgen ervoor dat binnenruimtes ruimer en synchroon met de natuur aanvoelen. NatureConnect maakt van binnenruimtes productieve, ontspannende of inspirerende ruimtes.
Product specifications
Suitable for outdoor use
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Housing
Plastic housing
Suitable for constant current
Yes
Suitable for constant voltage
No
Output voltage
0 - 54 V
Output current
0 - 1700 mA
Suitable for DC-voltage (primary side)
No
Output power
0 - 50 W
Degree of protection (IP)
IP20
Protection class according to IEC 61140
I

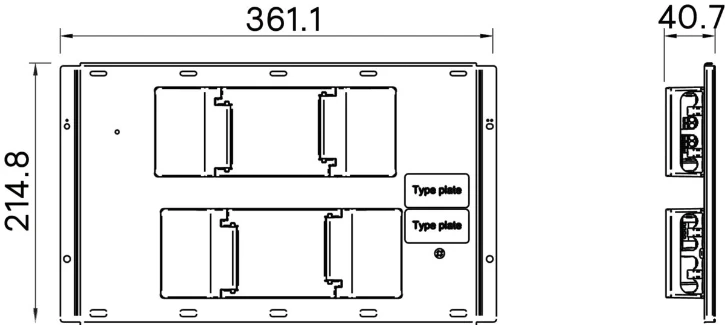

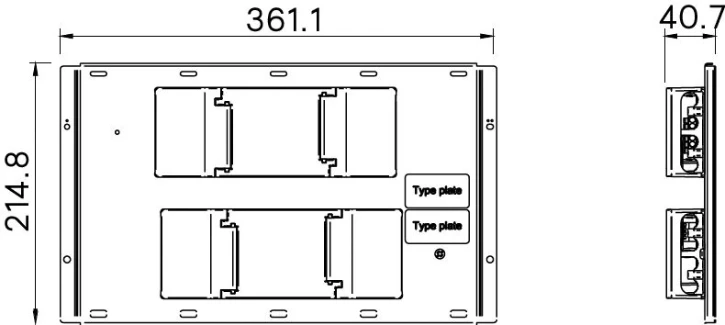

Length
361.1 mm
Width
214.8 mm
Height
40.7 mm
Constant light output (CLO)
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Power consumption
60 W
Dimmable
Yes
Dimming DALI-2
Yes
Input voltage
220 - 240 V
Frequency input voltage
50 - 60 Hz
Independently operating
No
PWM modulation
No
Overload protection
Yes
Overtemperature protection
No
Short-circuit protected
Yes
Dimming D4i
Yes
Efficiency
89 %
Mains surge immunity (common mode, L/N-Ground)
2 kV
Mains surge immunity (differential mode, L-N)
1 kV
Emergency power supply system
None
Ambient temperature
-25 - 85 °C
Max. number of luminaires per miniature circuit breaker B16 (MCB)
8
Max. number of luminaires per miniature circuit breaker C16 (MCB)
13
Driver lifetime
50000 h
Product information
