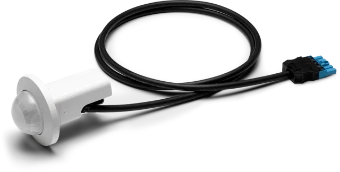

Movement sensor/presence detector complete Niko
Add to selection
General information
Ordercode YESSS
3111-9301
Product code
353-751421-1
EAN code
05413736388765
Product group
Movement sensor/presence detector complete
Brand
Niko
Product specifications
Model
Presence detector
Constant light control
Yes
HVAC-control
Yes
Forced switch off
Yes
Animal zone
No
Creep-under protection
Yes
Networkable
No
Scan angle
360 °
Optimum mounting height
3 m
Staircase light controller
Yes
Bridging switch
No
Max. reach sideways
37 m
Max. reach frontally
10 m
Diameter reach on floor
37 m
Suitable for wireless transmission
Yes
Remote operation
Yes
With remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
Yes
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP20
Impact strength
IK02
Voltage type
AC
Frequency
50 - 50 Hz
Switch-off delay
7200 s
Switching-on delay
7200 s
Detection angle horizontal
360 - 360 °
Pivoting range sensor, horizontal
360 - 360 °
Pivoting range sensor, vertical
360 - 360 °
Response value luminosity
20 - 2000 lx
Max. switching power
350 W
Suitable for C-load
Yes
Number of switching zones
1
Max. starting current
800 A
Control current
200 mA
With alarm function
No
Width
100 mm
Height
142 mm
Depth
142 mm
Diameter
100 mm
Built-in width
70 mm
Built-in depth
100 mm
Built-in length
70 mm
Built-in diameter
70 mm
Min. depth of built-in installation box
100 mm
Max. switching power LED
350 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
