General information

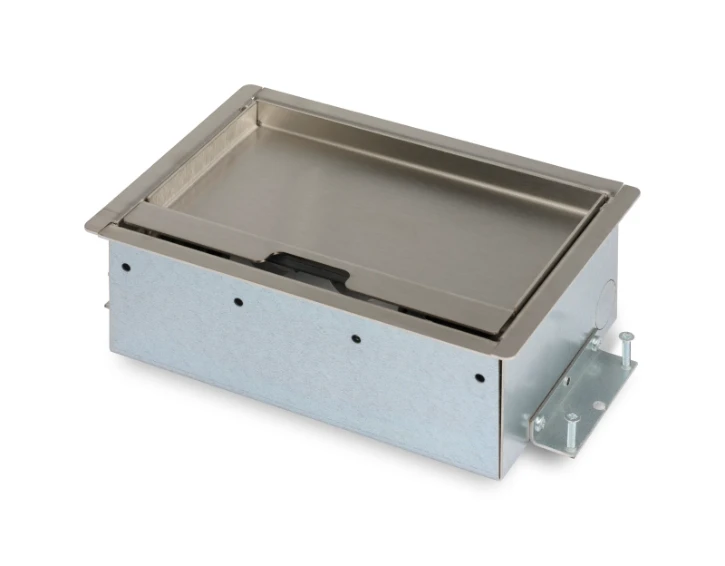

Servicebox 3.0 - 2x 230V RA + 1x leeg -
Servicebox 3.0 - 2x 230V RA + 1x leeg - RVS deksel - 15mm inleg - met
Ordercode YESSS
3077-7497
Product code
33.72.163
EAN code
08719322739032
Product group
Device installation insert for subfloor installation
Brand
O.C.S. Servicebox®
Serie
Vloerdozen
Type
Servicebox® 3.0
Product description
Vloerdoos OCS Servicebox® 3.0 heeft een basis die bijna in elke ruimte past. Vooral met dit onopvallende deksel en de lege module 45. Deze uitvoering kan zowel in een holle ruimte als een instortvloerdoos. De kenmerken op een rij:
- 2x 230V RA compleet voorbedraad.
- 1x lege module 45 voor bijvoorbeeld een multi-media-aansluiting.
- Rvs deksel 15mm inlegdiepte met oplegrand.
Kijk voor alle basiseigenschappen bij de uitgebreide omschrijving.
Niet de co
Product specifications
Cover model
Rectangular
Suitable for wet cleaning
No
Suitable for subfloor duct
No
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Number of device cups
3
With opening carpeting
Yes
Depth of flooring recess
15 mm
Protective frame carpeting
Yes
Min. built-in depth
75 mm
Length built-in dimension
133 mm
Width built-in dimension
240 mm
Number of socket outlets with protective contact CEE 7/3 (type F)
2
Number of socket outlets British Standard BS 1363
0
Number of inlets
5
With cable outlet in cover
Yes
Housing material
Steel
Surface protection housing
Galvanised
Material cover
Stainless steel
Surface protection cover
Untreated
Surface treatment cover
Untreated
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
Yes
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
0
Lockable cover
No
Outer length
133 mm
Outer width
198 mm
Degree of protection (IP) when in use (cable outlet open)
IP20
Degree of protection (IP) when not in use (cable outlet closed)
IP20
Number of socket outlets with protective contact CEE 7/5 (type E)
0
Number of data outlet openings
1
Height data outlet opening
45 mm
Width data outlet opening
45 mm
