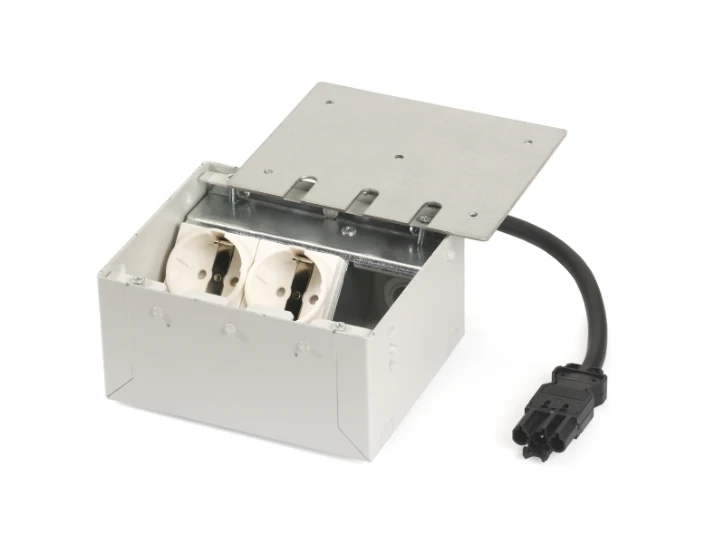

Tetra mini - 2x 230V RA + 1x leeg -

Vloerdoos OCS Tetra mini is het compacte aansluitpunt voor de holle vloer. Dankzij de verschillende deksels gaat de vloerdoos altijd in de ruimte op. OCS produceert Tetra mini in Nederland en levert standaard onder een makkelijk artikelnummer. Kenmerken van deze uitvoering:

• 100% stekerbaar, dus plug&play!
• Deksel geschikt voor de eigen vloerafwerking, zoals parket of natuursteen.
• Product specifications

  Cover model

  Rectangular

  Suitable for wet cleaning

  No

  Suitable for subfloor duct

  No

  Suitable for hollow floor

  Yes

  Suitable for double floor built-in

  Yes

  Number of device cups

  2

  With opening carpeting

  Yes

  Depth of flooring recess

  0 mm

  Protective frame carpeting

  No

  Min. built-in depth

  75 mm

  Colour

  Other

  Length built-in dimension

  150 mm

  Width built-in dimension

  125 mm

  Number of socket outlets with protective contact CEE 7/3 (type F)

  2

  Number of socket outlets British Standard BS 1363

  0

  Number of inlets

  4

  Housing material

  Steel

  Surface protection housing

  Galvanised

  Material cover

  Steel

  Surface protection cover

  Galvanised

  Surface treatment cover

  Untreated

  Suitable for indoor installation

  Yes

  Suitable for outdoor installation

  No

  Suitable for concrete installation

  No

  Suitable for floors in computer rooms

  No

  Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

  0

  Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

  0

  Outer length

  150 mm

  Lock control

  Other

  Outer width

  125 mm

  Degree of protection (IP) when in use (cable outlet open)

  IP20

  Degree of protection (IP) when not in use (cable outlet closed)

  IP20

  Number of socket outlets with protective contact CEE 7/5 (type E)

  0

  more specifications
