Tetra mini - 2x 230V RA + 1x leeg -

  • 3037-8063
  • |
  • 33.71.023
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

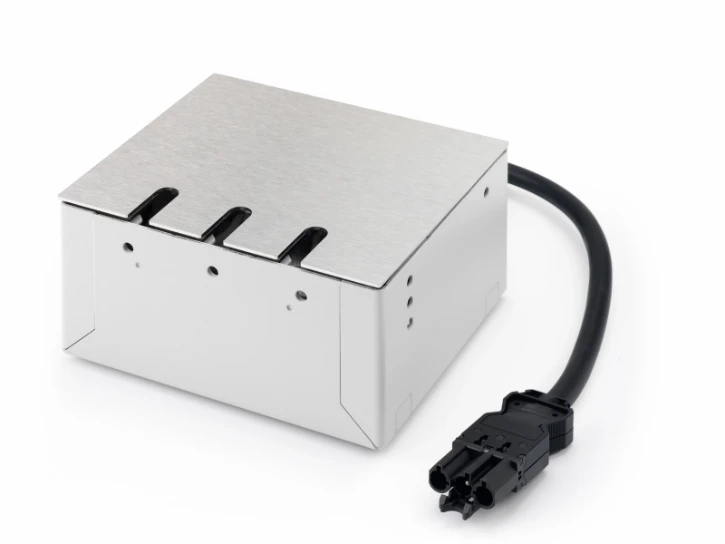

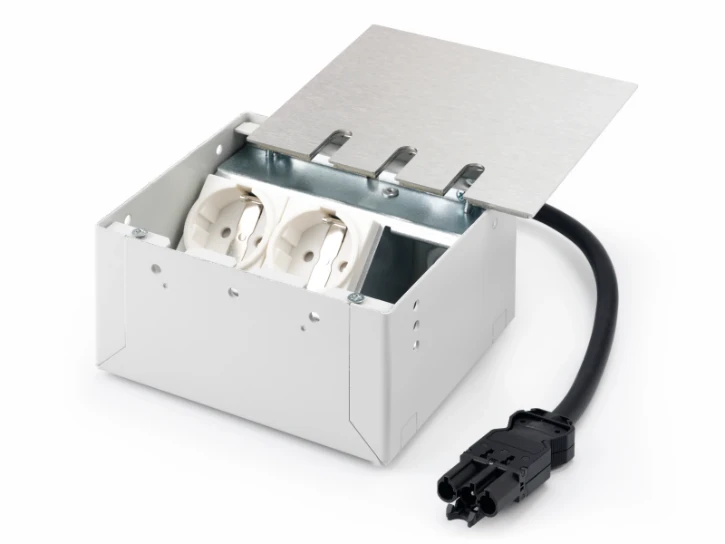

Tetra mini - 2x 230V RA + 1x leeg - Tetra mini - 2x 230V RA + 1x leeg - 0,5m GST - RVS deksel
Ordercode YESSS
3037-8063
Product code
33.71.023
EAN code
08719322730831
Product group
Device installation insert for subfloor installation
Brand
O.C.S. Tetra®
Serie
Vloerdozen
Type
Tetra® mini

Product description

Vloerdoos OCS Tetra mini is ideaal voor de holle vloer. De vloerdoos is compact en met de verschillende deksels altijd een met de ruimte. OCS produceert Tetra mini in Nederland en levert standaard onder een makkelijk artikelnummer. Kenmerken van deze uitvoering: Vlak rvs-deksel.

  • 100% stekerbaar, dus plug&play!
  • Vlak rvs deksel, dat in elk interieur past.

  • Product specifications

    Cover model
    Rectangular
    Suitable for wet cleaning
    No
    Suitable for subfloor duct
    No
    Suitable for hollow floor
    Yes
    Suitable for double floor built-in
    Yes
    Number of device cups
    3
    With opening carpeting
    No
    Depth of flooring recess
    0 mm
    Protective frame carpeting
    No
    Min. built-in depth
    75 mm
    Colour
    Other
    Length built-in dimension
    150 mm
    Width built-in dimension
    125 mm
    Number of socket outlets with protective contact CEE 7/3 (type F)
    2
    Number of socket outlets British Standard BS 1363
    0
    Number of inlets
    2
    With cable outlet in cover
    Yes
    Housing material
    Steel
    Surface protection housing
    Galvanised
    Material cover
    Steel
    Surface protection cover
    Galvanised
    Surface treatment cover
    Untreated
    Suitable for indoor installation
    Yes
    Suitable for outdoor installation
    No
    Suitable for concrete installation
    No
    Suitable for floors in computer rooms
    No
    Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    0
    Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    0
    Lockable cover
    No
    Outer length
    125 mm
    Outer width
    150 mm
    Degree of protection (IP) when in use (cable outlet open)
    IP20
    Degree of protection (IP) when not in use (cable outlet closed)
    IP20
    Number of socket outlets with protective contact CEE 7/5 (type E)
    0
    Number of data outlet openings
    1
    Height data outlet opening
    45 mm
    Width data outlet opening
    45 mm
