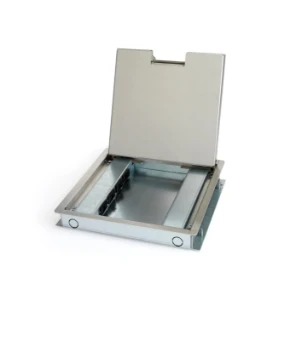

Velox 2.0 Type 32 - 4x GST + 8x RJ45

Vloerdoos OCS VELOX^© is breed inzetbaar. We leveren een complete vloerdoos onder een artikelnummer. Alle OCS VELOX^©
vloerdozen worden in Nederland geproduceerd. Deze uitvoering heeft de volgende eigenschappen:

• Product specifications

  Cover model

  Square

  Suitable for wet cleaning

  No

  Suitable for subfloor duct

  No

  Suitable for hollow floor

  No

  Suitable for double floor built-in

  No

  Number of device cups

  4

  With opening carpeting

  Yes

  Depth of flooring recess

  15 mm

  Protective frame carpeting

  Yes

  Min. built-in depth

  46 mm

  Colour

  Other

  RAL-number

  7024

  Length built-in dimension

  282 mm

  Width built-in dimension

  252 mm

  Number of socket outlets with protective contact CEE 7/3 (type F)

  0

  Number of socket outlets British Standard BS 1363

  0

  Number of inlets

  16

  With cable outlet in cover

  Yes

  Housing material

  Steel

  Surface protection housing

  Galvanised

  Material cover

  Stainless steel

  Surface protection cover

  Anodised

  Surface treatment cover

  Other

  Suitable for indoor installation

  Yes

  Suitable for outdoor installation

  No

  Suitable for concrete installation

  Yes

  Suitable for floors in computer rooms

  No

  Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

  0

  Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

  0

  Lockable cover

  No

  Outer length

  252 mm

  Lock control

  Other

  Outer width

  252 mm

  Degree of protection (IP) when in use (cable outlet open)

  IP20

  Degree of protection (IP) when not in use (cable outlet closed)

  IP20

  Number of socket outlets with protective contact CEE 7/5 (type E)

  0

  more specifications
