Velox 2.0 Type 50 - 4x 230V RA + 4x

Add to selection
General information
Ordercode YESSS
3016-3097
Product code
33.70.007
EAN code
08719322730039
Product group
Device installation insert for subfloor installation
Brand
O.C.S. Velox®
Serie
Vloerdozen
Type
Velox®

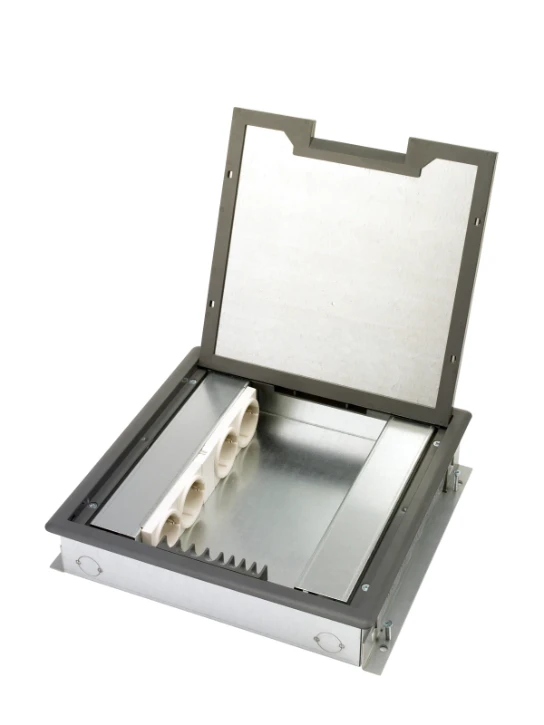

Velox 2.0 Type 50 - 4x 230V RA + 4x Velox 2.0 Type 50 - 4x 230V RA + 4x leeg - deksel - 4mm inleg - met kn
STOCK
IN STOCK
0 piece
Product description

Vloerdoos OCS VELOX© heeft zich meer dan bewezen! We leveren een complete instortvloerdoos onder een artikelnummer. Alle OCS VELOX© vloerdozen worden in Nederland geproduceerd. Deze uitvoering heeft de volgende eigenschappen:

  • Stevige sendizmir behuizing.
  • Geringe instortdiepte van 50 mm.
  • Compleet voorbedraad geleverd met 4x 230V RA.
  • Gescheiden paneel met 4x leeg Module45. De lege modulen kunt u invullen met een van onze inzetplaatjes.
  • RAL7024 kunststof klapdeksel met 4 mm inleg, geschikt voor o.a. tapijt.

    Product specifications
    Cover model
    Square
    Suitable for wet cleaning
    No
    Suitable for subfloor duct
    No
    Suitable for hollow floor
    No
    Suitable for double floor built-in
    No
    Number of device cups
    4
    With opening carpeting
    Yes
    Depth of flooring recess
    3 mm
    Protective frame carpeting
    Yes
    Min. built-in depth
    51.5 mm
    Colour
    Grey
    RAL-number
    7024
    Length built-in dimension
    282 mm
    Width built-in dimension
    252 mm
    Number of socket outlets with protective contact CEE 7/3 (type F)
    4
    Number of socket outlets British Standard BS 1363
    0
    Number of inlets
    18
    With cable outlet in cover
    Yes
    Housing material
    Steel
    Surface protection housing
    Galvanised
    Material cover
    Plastic
    Surface protection cover
    Untreated
    Surface treatment cover
    Untreated
    Suitable for indoor installation
    Yes
    Suitable for outdoor installation
    No
    Suitable for concrete installation
    Yes
    Suitable for floors in computer rooms
    No
    Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    0
    Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    0
    Lockable cover
    No
    Outer length
    252 mm
    Lock control
    Other
    Outer width
    252 mm
    Degree of protection (IP) when in use (cable outlet open)
    IP20
    Degree of protection (IP) when not in use (cable outlet closed)
    IP20
    Number of socket outlets with protective contact CEE 7/5 (type E)
    0
