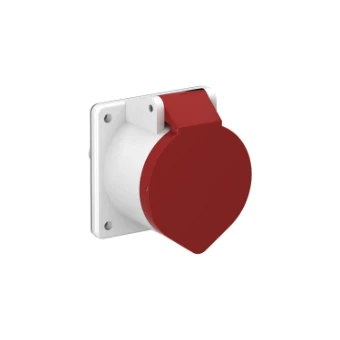

Panel-mounted CEE socket outlet (IEC 60309) OBO
Add to selection
General information
Ordercode YESSS
0370-1899
Product code
6109874
EAN code
04012195125594
Product group
Panel-mounted CEE socket outlet (IEC 60309)
Brand
OBO
Product specifications
IEC-amperage
16 A
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Rated voltage
400 - 400 V
Number of poles
5
Identification colour
Red
Degree of protection (IP)
IP44
Connection system
Screwless terminal
Insert direction
Straight
Material
Plastic
Military model
No
Flange size vertical
75 mm
Drill hole distance vertical
60 mm
Flange size horizontal
75 mm
Drill hole distance horizontal
60 mm
Product information
