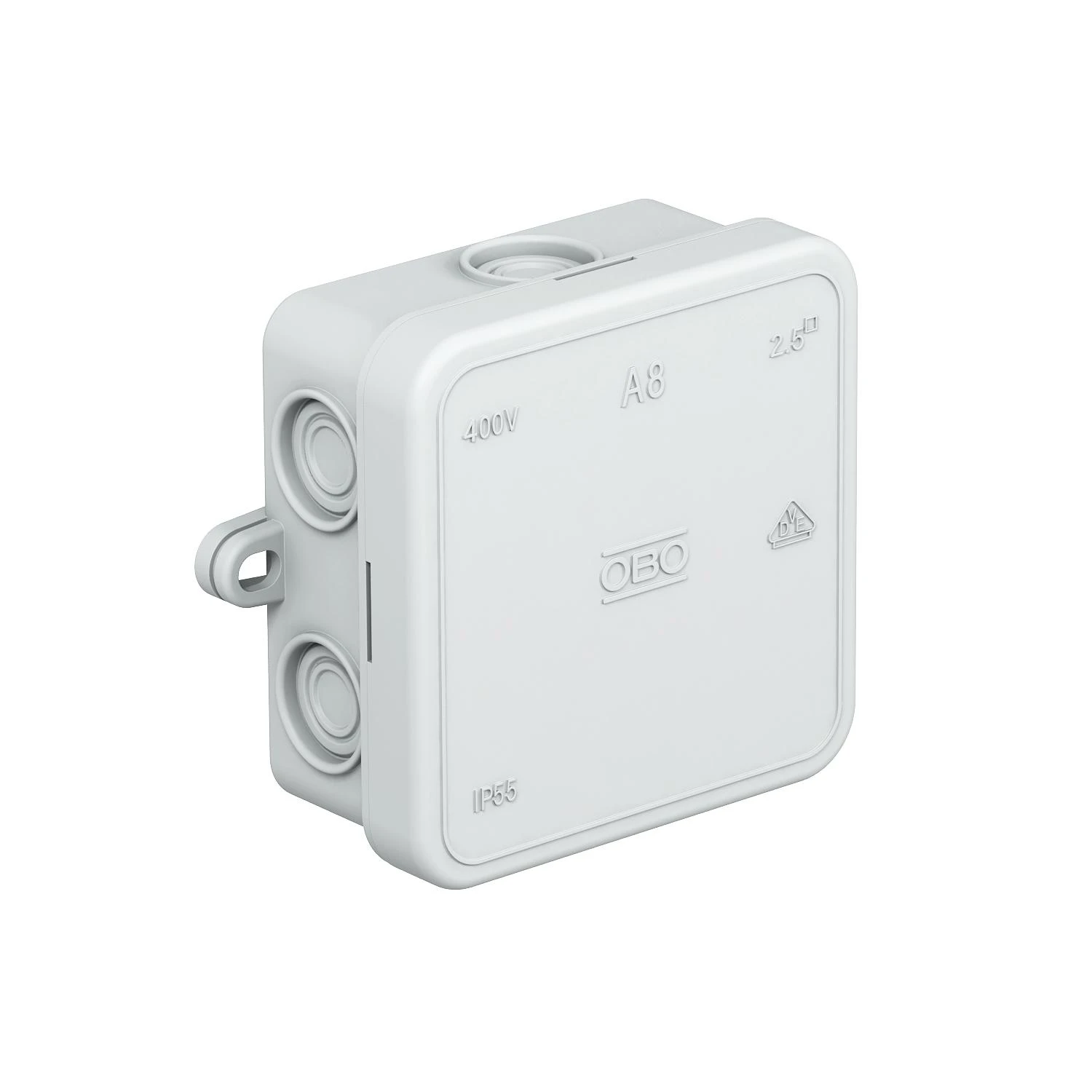

Junction box 75x75x36 Polyethyleen Eco Lichtgrijs RAL 7035
- 3145-2348
- |
- 2000018
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Junction box 75x75x36 Polyethyleen Eco Lichtgrijs RAL 7035
Junction box 75x75x36 Polyethyleen Eco Lichtgrijs RAL 7035
Ordercode YESSS
3145-2348
Product code
2000018
EAN code
04012197496487
Product group
Box/housing for surface mounting on the wall/ceiling
Brand
OBO
Serie
EcoLine
Type
A 8 ECO
Product description

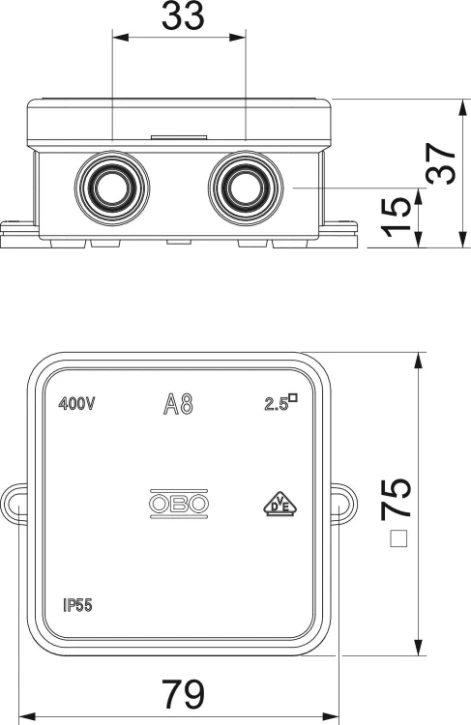

Protection class IP55, nominal voltage 690 V, nominal cross-section 2.5 mm², 7 entries for cable diameters of 5–14 mm.Clamshell.Dimensions: 75 x 75 x 36.2 mm.Internal clearance: 65 x 65 x 32 mmFor every 10 sockets 1 cutting tool
Product specifications
Max. conductor cross section
2.5 mm²
Equipped with
None
Shape
Square
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
Inlet from the rear
No
Length
75 mm
Width
75 mm
Depth
36.7 mm
Connectable
Yes
Number of inlets
7
Type of housing feed-through
Preembossing
Material
Plastic
Halogen free
Yes
Colour
Grey
Degree of protection (IP)
IP55
Cover model
Blind cover
Transparent cover
No
Cover attachment
Snapped on
Castable
No
Casting compound included
No
Sealable
No
Rated insulation voltage Ui
690 V
Circuit integrity
None
With screening
No
Weatherproof
No
Working temperature
-5 - 45 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
Model
Junction box
Number of cable glands included
0
RAL-number (similar)
7035
Outgoing connections with connectors for plug-in building installation
No
