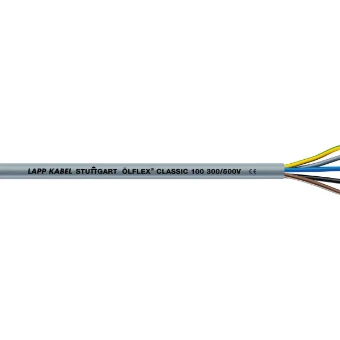

ÖLFLEX CLASSIC 100 300/500V 3G2,5 - 100 MTR
- 3080-4590
- |
- 1120801
0 meter
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
ÖLFLEX CLASSIC 100 300/500V 3G2,5 - 100 MTR
ÖLFLEX CLASSIC 100 300/500V 3G2,5 - 100 MTR
Ordercode YESSS
3080-4590
Product code
1120801
EAN code
04044777301034
Product group
Power cable < 1 kV, for moving application
Brand
ÖLFLEX
Serie
Aansluit- en stuurstroomkabels
Type
ÖLFLEX CLASSIC 100 300/500 V
Product description
Voordelen; Ruimtebesparende installatie dankzij kleine kabeldiameters Hoge elektrische prestaties dankzij 4 kV testspanning Hoge flexibiliteit door korte slaglengte Toepassing; InstallatietechniekIndustriële machinesHVACEnergiecentrales In droge of vochtige ruimtes onderworpen aan gemiddelde mechanische belasting Voor vaste installatie en incidenteel buigen Geschikt voor drip loop toepassingen in windturbines Hoge kwaliteit alternatief voor stuurstroomkabels van het type YSLY of YY
Product specifications
Nominal cross section conductor
2.5 mm²
Conductor category
Class 5 = flexible
Number of cores
3
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Colour
Material outer sheath
Polyvinyl chloride (PVC)
Colour outer sheath
Grey
Reaction-to-fire according to EN 13501-6: Class
Eca
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Outer diameter approximate
8.1 mm
Min. permitted bending radius, stationary application/permanent installation
32.4 mm
Permitted cable outer temperature during assembling/handling
-5 - 70 °C
Permitted cable outer temperature after assembling without vibration
-40 - 80 °C
Nominal voltage U0
300 V
Nominal voltage U
500 V
Conductor material
Copper
Conductor surface
Bare
Cable geometry
Round
Shape of conductor
Round
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
No
Flame retardant according to IEC 60332-3-22 (Cat A)
No
Flame retardant according to IEC 60332-3-23 (Cat B)
No
Flame retardant according to IEC 60332-3-24 (Cat C)
No
Flame retardant according to IEC 60332-3-25 (Cat D)
No
Low smoke according to EN IEC 61034-2
No
Halogen free according to EN IEC 60754-1
No
Halogen free according to EN IEC 60754-2
No
Halogen free according to EN IEC 60754-3
No
