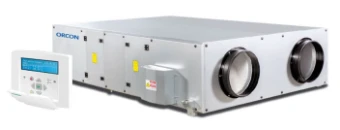

WTU-1000-EC-IE WTW -extra isolatie, met EC motoren, incl. regeling
Add to selection
General information
Ordercode YESSS
3054-9515
Product code
15104010
EAN code
08718403862843
Product group
Heat recovery unit (non-residential)
Brand
Orcon
Serie
WTW Decentraal
Type
Geluidgedempt
WTU-1000-EC-IE WTW -extra isolatie, met EC motoren, incl. regeling
WTU-1000-EC-IE WTW -extra isolatie, met EC motoren, incl. regeling
STOCK
IN STOCK
0
piece
Product description
WTU-1000-EC-IE WTW -extra isolatie, met EC motoren, incl. ReginWTW unit 1000 m3/h, extra geisoleerd, met EC motoren, incl. regeling, fabricaat Orcon
Product specifications
Device emplacement
Indoor positioning
Housing material
Steel, lined
Connection voltage
1 x 230 V AC
Power consumption
0.354 kW
With thermal overload protection
Yes
Electrical connection
Connection cable with plug
Suitable for electronic control
Yes
Suitable for low-current control
Yes
Suitable for transformer control
No
Nominal duct diameter, outdoor connection
315 mm
Connection
Flange
Thermal efficiency
76 %
With bypass
Yes
Height
472 mm
Length
1657 mm
Max. air volume at 50 Pa
1160 m³/h
Max. air volume at 100 Pa
1070 m³/h
Max. air volume at 150 Pa
980 m³/h
Max. air volume at 200 Pa
920 m³/h
Max. air volume at 250 Pa
840 m³/h
Max. air volume at 300 Pa
750 m³/h
Max. air volume at 400 Pa
580 m³/h
Fan type
Direct
Type of motor
Electronically commutated (EC)
Heat recovery by
Cross-counter-flow unit
Type of cooling coil
None
Type of heating coil
None
Change-over system
No
Supply filter according to ISO 16890-1:2016
ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016
45 %
Exhaust filter according to ISO 16890-1:2016
ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016
45 %
With condensate drain
No
Frost protection circuit
No
With constant pressure control
No
With constant volume flow control
No
With rotational speed/frequency control
Yes
Degree of protection (IP)
IP42
Width
1351 mm
With roof plate
No
With support frame
No
Material heat exchanger
Other
Latent heat efficiency
38 %
Weight
135 kg
