General information

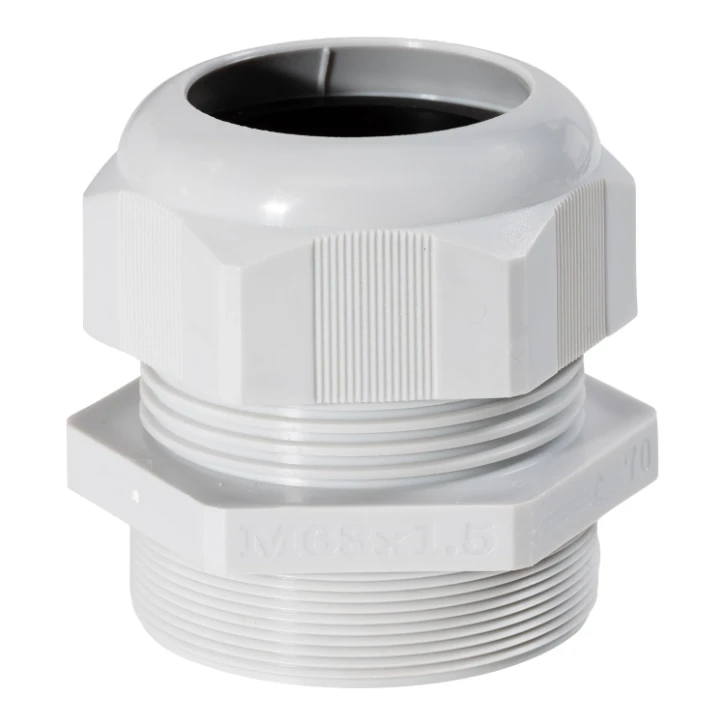

M63x1,5 Wartel 34-44mm / Licht grijs
M63x1,5 Wartel 34-44mm / Licht grijs
Ordercode YESSS
3054-9310
Product code
OR-OMRL-10
EAN code
08691969033684
Product group
Cable gland
Brand
Ortac
Serie
OMRL
Type
M63 Licht grijs
Product description
Product specifications
Thread type
Metric
Nominal thread size metric/PG
63
Pitch thread
1.5 mm
Thread length
18 mm
Wrench width
70 mm
Suitable for cable diameter
34 - 44 mm
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Halogen free
Yes
Glass-fibre reinforced
No
Degree of protection (IP)
IP68
Shock resistant
No
Colour
Grey
RAL-number
7035
Bend radius protection/trumpet flare
No
With locknut
No
Snapping in opening
No
Model
Straight
Multi seal area
No
Flat cable coupling
No
With strain relief
No
Type of sealing
Sealing ring
Separable screw gland
No
Working temperature
-20 - 100 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
Yes
EMC-version
No
Screened
No
Pressure-compensating
No
Connection type to housing
Screwing
For wall thickness
34 - 44 mm
Material sealing
Other
